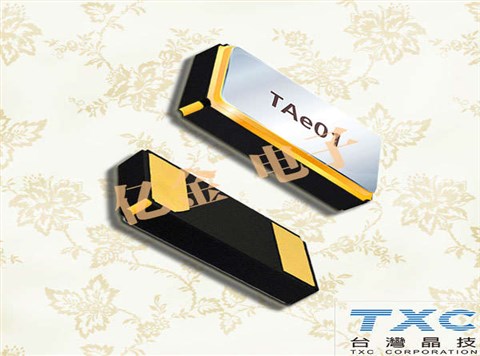

TXC|32.768K|9HT10-32.768KEZF-T|3215|-40~85℃,臺灣高品質TXC晶振,特點，頻率范圍: 32.768KHz，SMD: 陶瓷封裝外部尺寸(mm)， L: 3.2xW: 1.5xH: 0.75 RoHS兼容&無鉛，應用程序，小型移動設備、通信設備、消費類產品、商業和工業應用。
TXC|32.768K|9HT10-32.768KEZF-T|3215|-40~85℃
| 項目 | 標志 | 9HT10 | 環境 |
| 標稱頻率 |
 0
|
32.768 kHz | |
| 頻率公差 | ?f/f0 | ±10ppm, ±20ppm, ±30ppm | at 25°C |
| 負載電容 | CL | 6pF, 7pF, 9pF, 12.5pF | |
| 工作溫度范圍 | TOTR | -40°C ~ +85°C | |
| -40°C ~ +125°C | |||
| 儲存溫度范圍 | TSTR | -55°C ~ +125°C | |
| 轉換溫度 | TM | 25°C ± 5°C | |
| 溫度系數 | β | -0.04 ppm/°C2 Max. | |
| 運動電容 | C1 | 3.1 fF Typ. | |
| 運動阻力（ESR） | R1 | 70 kQ Max. | at 25°C |
| 驅動電平 | DL | 0.1pW Typ. / 1.0pW Max. | |
| 老化 | ?f/f0 | ±3 ppm Max. | at 25°C ± 3°C, first year |
| 分路電容 | C0 | 1.0 pF Typ. |
TXC|32.768K|9HT10-32.768KEZF-T|3215|-40~85℃
| TXC原廠編碼 | 生產廠家 | 型號 | 頻率 | 工作溫度 | 尺寸 |
| 9HT10-32.768KBZF-T | TXC Crystal | 9HT10 | 32.768kHz | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| 9HT10-32.768KBZF-T | TXC Crystal | 9HT10 | 32.768kHz | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| 9HT10-32.768KBZF-T | TXC Crystal | 9HT10 | 32.768kHz | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| 9HT10-32.768KDZF-T | TXC Crystal | 9HT10 | 32.768kHz | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| 9HT10-32.768KDZF-T | TXC Crystal | 9HT10 | 32.768kHz | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| 9HT10-32.768KDZF-T | TXC Crystal | 9HT10 | 32.768kHz | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| 9HT10-32.768KEZF-T | TXC Crystal | 9HT10 | 32.768kHz | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| 9HT10-32.768KEZF-T | TXC Crystal | 9HT10 | 32.768kHz | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| 9HT10-32.768KEZF-T | TXC Crystal | 9HT10 | 32.768kHz | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| 9HT10-32.768KAZF-T | TXC Crystal | 9HT10 | 32.768kHz | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| 9HT10-32.768KAZF-T | TXC Crystal | 9HT10 | 32.768kHz | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| 9HT10-32.768KAZF-T | TXC Crystal | 9HT10 | 32.768kHz | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| 9HT10-32.768KBZB-T | TXC Crystal | 9HT10 | 32.768kHz | -40°C ~ 85°C | 0.126" L x 0.061" W (3.20mm x 1.50mm) |
| 9HT10-32.768KBZB-T | TXC Crystal | 9HT10 | 32.768kHz | -40°C ~ 85°C | 0.126" L x 0.061" W (3.20mm x 1.50mm) |
| 9HT10-32.768KBZB-T | TXC Crystal | 9HT10 | 32.768kHz | -40°C ~ 85°C | 0.126" L x 0.061" W (3.20mm x 1.50mm) |
| 9HT10-32.768KBZC-T | TXC Crystal | 9HT10 | 32.768kHz | -40°C ~ 85°C | 0.126" L x 0.061" W (3.20mm x 1.50mm) |
| 9HT10-32.768KBZC-T | TXC Crystal | 9HT10 | 32.768kHz | -40°C ~ 85°C | 0.126" L x 0.061" W (3.20mm x 1.50mm) |
| 9HT10-32.768KBZC-T | TXC Crystal | 9HT10 | 32.768kHz | -40°C ~ 85°C | 0.126" L x 0.061" W (3.20mm x 1.50mm) |
| 9HT10-32.768KBZY-T | TXC Crystal | 9HT10 | 32.768kHz | -40°C ~ 85°C | 0.126" L x 0.061" W (3.20mm x 1.50mm) |
| 9HT10-32.768KBZY-T | TXC Crystal | 9HT10 | 32.768kHz | -40°C ~ 85°C | 0.126" L x 0.061" W (3.20mm x 1.50mm) |
| 9HT10-32.768KBZY-T | TXC Crystal | 9HT10 | 32.768kHz | -40°C ~ 85°C | 0.126" L x 0.061" W (3.20mm x 1.50mm) |
| 9HT10-32.768KAZB-T | TXC Crystal | 9HT10 | 32.768kHz | -40°C ~ 85°C | 0.126" L x 0.061" W (3.20mm x 1.50mm) |
| 9HT10-32.768KAZB-T | TXC Crystal | 9HT10 | 32.768kHz | -40°C ~ 85°C | 0.126" L x 0.061" W (3.20mm x 1.50mm) |
| 9HT10-32.768KAZB-T | TXC Crystal | 9HT10 | 32.768kHz | -40°C ~ 85°C | 0.126" L x 0.061" W (3.20mm x 1.50mm) |
| 9HT10-32.768KAZC-T | TXC Crystal | 9HT10 | 32.768kHz | -40°C ~ 85°C | 0.126" L x 0.061" W (3.20mm x 1.50mm) |
| 9HT10-32.768KAZC-T | TXC Crystal | 9HT10 | 32.768kHz | -40°C ~ 85°C | 0.126" L x 0.061" W (3.20mm x 1.50mm) |
| 9HT10-32.768KAZC-T | TXC Crystal | 9HT10 | 32.768kHz | -40°C ~ 85°C | 0.126" L x 0.061" W (3.20mm x 1.50mm) |
| 9HT10-32.768KAZY-T | TXC Crystal | 9HT10 | 32.768kHz | -40°C ~ 85°C | 0.126" L x 0.061" W (3.20mm x 1.50mm) |
| 9HT10-32.768KAZY-T | TXC Crystal | 9HT10 | 32.768kHz | -40°C ~ 85°C | 0.126" L x 0.061" W (3.20mm x 1.50mm) |
| 9HT10-32.768KAZY-T | TXC Crystal | 9HT10 | 32.768kHz | -40°C ~ 85°C | 0.126" L x 0.061" W (3.20mm x 1.50mm) |
| 9HT10-32.768KDZB-T | TXC Crystal | 9HT10 | 32.768kHz | -40°C ~ 85°C | 0.126" L x 0.061" W (3.20mm x 1.50mm) |
| 9HT10-32.768KDZB-T | TXC Crystal | 9HT10 | 32.768kHz | -40°C ~ 85°C | 0.126" L x 0.061" W (3.20mm x 1.50mm) |
| 9HT10-32.768KDZB-T | TXC Crystal | 9HT10 | 32.768kHz | -40°C ~ 85°C | 0.126" L x 0.061" W (3.20mm x 1.50mm) |
| 9HT10-32.768KDZY-T | TXC Crystal | 9HT10 | 32.768kHz | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| 9HT10-32.768KDZY-T | TXC Crystal | 9HT10 | 32.768kHz | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| 9HT10-32.768KDZY-T | TXC Crystal | 9HT10 | 32.768kHz | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| 9HT10-32.768KDZC-T | TXC Crystal | 9HT10 | 32.768kHz | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| 9HT10-32.768KDZC-T | TXC Crystal | 9HT10 | 32.768kHz | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| 9HT10-32.768KDZC-T | TXC Crystal | 9HT10 | 32.768kHz | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| 9H03270036 | TXC Crystal | 9HT10 | 32.768kHz | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| 9H03200019 | TXC Crystal | 9HT10 | 32.768kHz | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| 9H03200031 | TXC Crystal | 9HT10 | 32.768kHz | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| 9H03200042 | TXC Crystal | 9HT10 | 32.768kHz | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| 9H03220005 | TXC Crystal | 9HT10 | 32.768kHz | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| 9H03220008 | TXC Crystal | 9HT10 | 32.768kHz | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| 9H03220009 | TXC Crystal | 9HT10 | 32.768kHz | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| 9H03270011 | TXC Crystal | 9HT10 | 32.768kHz | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| 9H03270040 | TXC Crystal | 9HT10 | 32.768kHz | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| 9H03270052 | TXC Crystal | 9HT10 | 32.768kHz | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| 9H03270059 | TXC Crystal | 9HT10 | 32.768kHz | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| 9H03277003 | TXC Crystal | 9HT10 | 32.768kHz | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| 9H03277005 | TXC Crystal | 9HT10 | 32.768kHz | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| 9H03200036 | TXC Crystal | 9HT10 | 32.768kHz | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| 9H03200021 | TXC Crystal | 9HT10 | 32.768kHz | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| 9H03200034 | TXC Crystal | 9HT10 | 32.768kHz | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| 9H03200022 | TXC Crystal | 9HT10 | 32.768kHz | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| 9H03200033 | TXC Crystal | 9HT10 | 32.768kHz | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| 9H03270024 | TXC Crystal | 9HT10 | 32.768kHz | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| 9H03270042 | TXC Crystal | 9HT10 | 32.768kHz | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
