福克斯美國晶振,FK12AEIHI0.032768-T3電動牙刷晶振,FK12A小型音叉晶振
頻率：32.768KHz

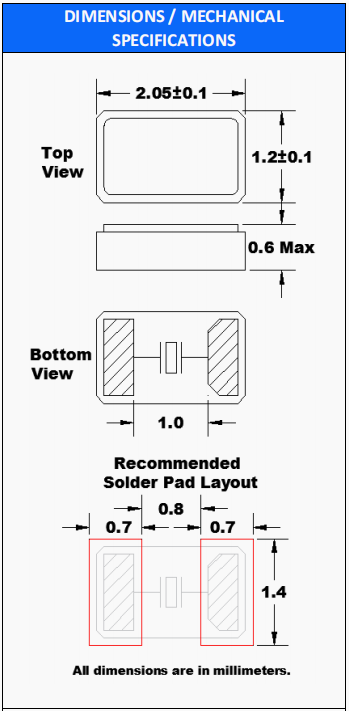

尺寸：2012mm
福克斯美國晶振,FK12AEIHI0.032768-T3電動牙刷晶振,FK12A小型音叉晶振,美國FOX晶振公司，音叉晶振，進口晶振，32.768KHz晶振，2012晶振，環保無鉛晶振，低損耗晶振，高精度晶振，二腳晶振，超小型晶振，FK12A晶振，微型晶振，汽車晶振，汽車輔助駕駛晶振，福克斯晶振，中控系統晶振，美國晶振，SMD晶振，無源晶振，工業設備晶振，移動通訊晶振，石英晶體，6G信號放大器晶振，移動網絡晶振，無源晶振，貼片晶振，智能手表晶振。
福克斯美國晶振,FK12AEIHI0.032768-T3電動牙刷晶振,FK12A小型音叉晶振

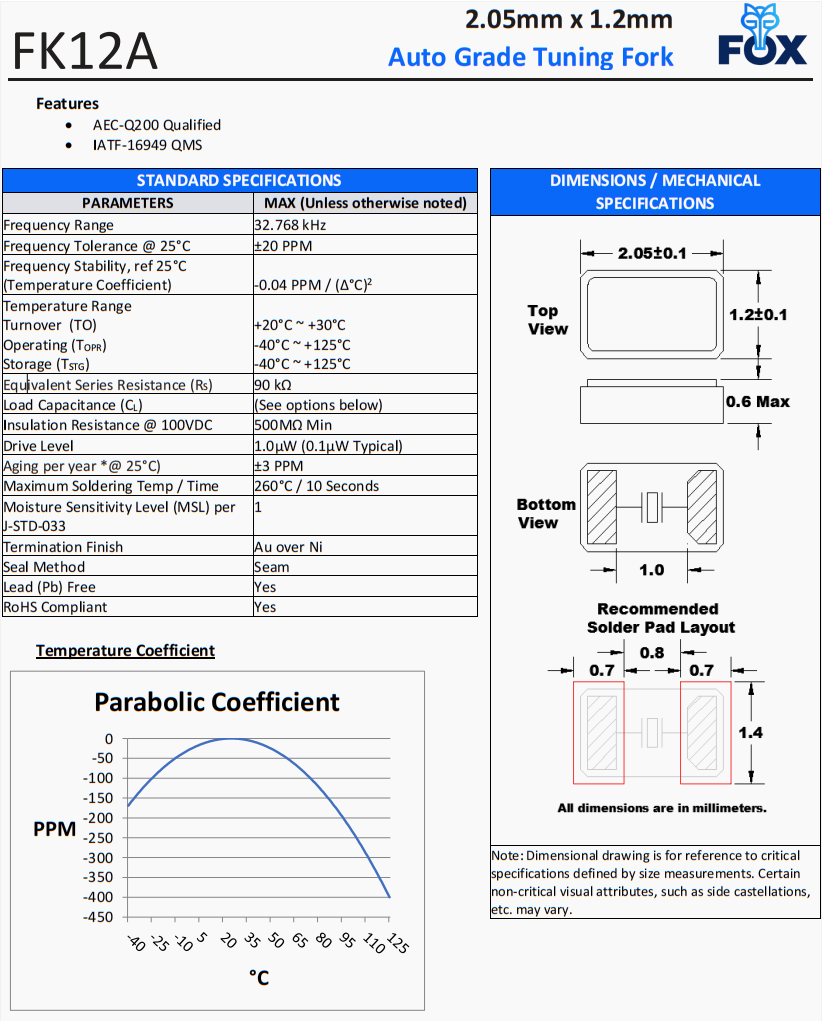

| STANDARD SPECIFICATIONS | |
| 參數 | MAX (Unless otherwise noted) |
| 頻率 | 32.768 kHz |
| 頻率容差 | ±20 PPM |
| 頻率穩定度 | -0.04 PPM / (?°C)2 |
|
溫度范圍 運輸 (TO) 工作 (TOPR) 儲存 (TSTG) |
+20°C ~ +30°C -40°C ~ +125°C -40°C ~ +125°C |
| 等效串聯電阻 | 90 k? |
| 負載電容 | (See options below) |
| 絕緣電阻 | 500M? Min |
| 驅動電平 | 1.0µW (0.1µW Typical) |
| 老化 | ±3 PPM |
| 最大焊接溫度/時間 | 260°C / 10 Seconds |
| 溫度敏感度 | 1 |
| 終止完成 | Au over Ni |
| 密封方法 | Seam |
| 無鉛 | Yes |
| 符合RoHS | Yes |
福克斯美國晶振,FK12AEIHI0.032768-T3電動牙刷晶振,FK12A小型音叉晶振
編碼
品牌
型號
工作溫度
頻率
頻率穩定度
頻率容差
負載電容
FC0BSFEEN23A99675-T2
Fox
FC0BS
-20°C ~ 85°C
23.99675 MHz
±20ppm
±15ppm
10 pF
FC0BSFEEN23A99675-T3
Fox
FC0BS
-20°C ~ 85°C
23.99675 MHz
±20ppm
±15ppm
10 pF
FC1BACBEI20.0-T3
Fox
FC1BA
-40°C ~ 12°C
20 MHz
±50ppm
±30ppm
10 pF
FC1BAEBDI16.0-T1
Fox
FC1BA
-40°C ~ 125°C
16 MHz
±50ppm
±20ppm
8 pF
FC1BAEBDI20.0-T1
Fox
FC1BA
-40°C ~ 125°C
20 MHz
±50ppm
±20ppm
8 pF
FC1BAEBDI24.0-T1
Fox
FC1BA
-40°C ~ 125°C
24 MHz
±50ppm
±20ppm
8 pF
FC1BAEBDI25.0-T1
Fox
FC1BA
-40°C ~ 125°C
25 MHz
±50ppm
±20ppm
8 pF
FC1BAEBDI40.0-T1
Fox
FC1BA
-40°C ~ 125°C
40 MHz
±50ppm
±20ppm
8 pF
FC1BAEBEI16.0-T1
Fox
FC1BA
-40°C ~ 125°C
16 MHz
±50ppm
±20ppm
10 pF
FC1BAEBEI20.0-T1
Fox
FC1BA
-40°C ~ 125°C
20 MHz
±50ppm
±20ppm
10 pF
FC1BAEBEI24.0-T1
Fox
FC1BA
-40°C ~ 125°C
24 MHz
±50ppm
±20ppm
10 pF
FC1BAEBEI25.0-T1
Fox
FC1BA
-40°C ~ 125°C
25 MHz
±50ppm
±20ppm
10 pF
FC1BAEBEI40.0-T1
Fox
FC1BA
-40°C ~ 125°C
40 MHz
±50ppm
±20ppm
10 pF
FC1BAEBGI16.0-T1
Fox
FC1BA
-40°C ~ 125°C
16 MHz
±50ppm
±20ppm
12 pF
FC1BAEBGI20.0-T1
Fox
FC1BA
-40°C ~ 125°C
20 MHz
±50ppm
±20ppm
12 pF
FC1BAEBGI24.0-T1
Fox
FC1BA
-40°C ~ 125°C
24 MHz
±50ppm
±20ppm
12 pF
FC1BAEBGI25.0-T1
Fox
FC1BA
-40°C ~ 125°C
25 MHz
±50ppm
±20ppm
12 pF
FC1BAEBGI40.0-T1
Fox
FC1BA
-40°C ~ 125°C
40 MHz
±50ppm
±20ppm
12 pF
FC1BQCCEK27.12-1
Fox
FC1BQ
-30°C ~ 85°C
27.12 MHz
±30ppm
±30ppm
10 pF
FC1BSCBEM27.12-T3
Fox
FC1BS
-40°C ~ 85°C
27.12 MHz
±50ppm
±30ppm
10 pF
FC1BSCCEM16.0-T3
Fox
FC1BS
-40°C ~ 85°C
16 MHz
±30ppm
±30ppm
10 pF
FC1BSHFEM32.0-T3
Fox
FC1BS
-40°C ~ 85°C
32 MHz
±15ppm
±10ppm
10 pF
FC1BSHHVK50.0-1-T3
Fox
FC1BS
-30°C ~ 85°C
50 MHz
±10ppm
±10ppm
7 pF
FC2BACBEI16.0-T1
Fox
FC2BA
-40°C ~ 12°C
16 MHz
±50ppm
±30ppm
10 pF
FC2BACBEI16.0-T3
Fox
FC2BA
-40°C ~ 12°C
16 MHz
±50ppm
±30ppm
10 pF
FC2BAEBDI12.0-T1
Fox
FC2BA
-40°C ~ 125°C
12 MHz
±50ppm
±20ppm
8 pF
FC2BAEBDI16.0-T1
Fox
FC2BA
-40°C ~ 125°C
16 MHz
±50ppm
±20ppm
8 pF
FC2BAEBDI20.0-T1
Fox
FC2BA
-40°C ~ 125°C
20 MHz
±50ppm
±20ppm
8 pF
FC2BAEBDI24.0-T1
Fox
FC2BA
-40°C ~ 125°C
24 MHz
±50ppm
±20ppm
8 pF
FC2BAEBDI25.0-T1
Fox
FC2BA
-40°C ~ 125°C
25 MHz
±50ppm
±20ppm
8 pF
FC2BAEBDI40.0-T1
Fox
FC2BA
-40°C ~ 125°C
40 MHz
±50ppm
±20ppm
8 pF
FC2BAEBEI12.0-T1
Fox
FC2BA
-40°C ~ 125°C
12 MHz
±50ppm
±20ppm
10 pF
FC2BAEBEI16.0-T1
Fox
FC2BA
-40°C ~ 125°C
16 MHz
±50ppm
±20ppm
10 pF
FC2BAEBEI20.0-T1
Fox
FC2BA
-40°C ~ 125°C
20 MHz
±50ppm
±20ppm
10 pF
FC2BAEBEI24.0-T1
Fox
FC2BA
-40°C ~ 125°C
24 MHz
±50ppm
±20ppm
10 pF
FC2BAEBEI25.0-T1
Fox
FC2BA
-40°C ~ 125°C
25 MHz
±50ppm
±20ppm
10 pF
FC2BAEBEI40.0-T1
Fox
FC2BA
-40°C ~ 125°C
40 MHz
±50ppm
±20ppm
10 pF
FC2BAEBGI25.0-T1
Fox
FC2BA
-40°C ~ 125°C
25 MHz
±50ppm
±20ppm
12 pF
FC2BSBBMM16.0-T1
Fox
FC2BS
-40°C ~ 85°C
16 MHz
±50ppm
±50ppm
20 pF
FC2BSBBMM16.0-T3
Fox
FC2BS
-40°C ~ 85°C
16 MHz
±50ppm
±50ppm
20 pF
FC3BABBKM20.0-T3
Fox
FC3BA
-40°C ~ 85°C
20 MHz
±50ppm
±50ppm
16 pF
FC3BACAGI16.0-T3
Fox
FC3BA
-40°C ~ 12°C
16 MHz
±100ppm
±30ppm
12 pF
FC3BACALI16.0-T3
Fox
FC3BA
-40°C ~ 12°C
16 MHz
±100ppm
±30ppm
18 pF
FC3BACBDI16.0-T3
Fox
FC3BA
-40°C ~ 12°C
16 MHz
±50ppm
±30ppm
8 pF
FC3BACCGM20.0-T3
Fox
FC3BA
-40°C ~ 85°C
20 MHz
±30ppm
±30ppm
12 pF
FC3BACCLP12.0-T3
Fox
FC3BA
-40°C ~ 10°C
12 MHz
±30ppm
±30ppm
18 pF
FC3BAEBDI12.0-T1
Fox
FC3BA
-40°C ~ 125°C
12 MHz
±50ppm
±20ppm
8 pF
FC3BAEBDI16.0-T1
Fox
FC3BA
-40°C ~ 125°C
16 MHz
±50ppm
±20ppm
8 pF
FC3BAEBDI20.0-T1
Fox
FC3BA
-40°C ~ 125°C
20 MHz
±50ppm
±20ppm
8 pF
FC3BAEBDI24.0-T1
Fox
FC3BA
-40°C ~ 125°C
24 MHz
±50ppm
±20ppm
8 pF
FC3BAEBDI25.0-T1
Fox
FC3BA
-40°C ~ 125°C
25 MHz
±50ppm
±20ppm
8 pF
FC3BAEBDI40.0-T1
Fox
FC3BA
-40°C ~ 125°C
40 MHz
±50ppm
±20ppm
8 pF
FC3BAEBDI8.0-T1
Fox
FC3BA
-40°C ~ 125°C
8 MHz
±50ppm
±20ppm
8 pF
FC3BAEBGI12.0-T1
Fox
FC3BA
-40°C ~ 125°C
12 MHz
±50ppm
±20ppm
12 pF
FC3BAEBGI24.0-T1
Fox
FC3BA
-40°C ~ 125°C
24 MHz
±50ppm
±20ppm
12 pF
FC3BAEBGI25.0-T1
Fox
FC3BA
-40°C ~ 125°C
25 MHz
±50ppm
±20ppm
12 pF
FC3BAEBGI40.0-T1
Fox
FC3BA
-40°C ~ 125°C
40 MHz
±50ppm
±20ppm
12 pF
FC3BQBBDM20.0-T3
Fox
FC3BQ
-40°C ~ 85°C
20 MHz
±50ppm
±50ppm
8 pF
FC3BQBBME12.0-T3
Fox
FC3BQ
-10°C ~ 70°C
12 MHz
±50ppm
±50ppm
20 pF
FC3BQBBME16.0-T1
Fox
FC3BQ
-10°C ~ 70°C
16 MHz
±50ppm
±50ppm
20 pF
FC3BQBBME24.0-T1
Fox
FC3BQ
-10°C ~ 70°C
24 MHz
±50ppm
±50ppm
20 pF
FC3BQBBME25.0-T1
Fox
FC3BQ
-10°C ~ 70°C
25 MHz
±50ppm
±50ppm
20 pF
FC3BQBBME25.0-T3
Fox
FC3BQ
-10°C ~ 70°C
25 MHz
±50ppm
±50ppm
20 pF
FC3BQBBME27.0-T1
Fox
FC3BQ
-10°C ~ 70°C
27 MHz
±50ppm
±50ppm
20 pF
FC3BQBBMM12.0-T1
Fox
FC3BQ
-40°C ~ 85°C
12 MHz
±50ppm
±50ppm
20 pF
FC3BQBBMM12.0-T3
Fox
FC3BQ
-40°C ~ 85°C
12 MHz
±50ppm
±50ppm
20 pF
FC3BQBBMM24.0-T1
Fox
FC3BQ
-40°C ~ 85°C
24 MHz
±50ppm
±50ppm
20 pF
FC3BQBBMM24.0-T3
Fox
FC3BQ
-40°C ~ 85°C
24 MHz
±50ppm
±50ppm
20 pF
FC3BQBBMM25.0-T1
Fox
FC3BQ
-40°C ~ 85°C
25 MHz
±50ppm
±50ppm
20 pF
FC3BQBBMM25.0-T3
Fox
FC3BQ
-40°C ~ 85°C
25 MHz
±50ppm
±50ppm
20 pF
FC3BQBBVM25.0-T3
Fox
FC3BQ
-40°C ~ 85°C
25 MHz
±50ppm
±50ppm
7 pF
FC3BSBBEM26.0-T3
Fox
FC3BS
-40°C ~ 85°C
26 MHz
±50ppm
±50ppm
10 pF
FC3BSBBLM25.0-T3
Fox
FC3BS
-40°C ~ 85°C
25 MHz
±50ppm
±50ppm
18 pF
FC3BSBBMM25.0-T3
Fox
FC3BS
-40°C ~ 85°C
25 MHz
±50ppm
±50ppm
20 pF
FC3BSHFEM12.0-T3
Fox
FC3BS
-40°C ~ 85°C
12 MHz
±15ppm
±10ppm
10 pF
FC3BSHHEF26.0-T3
Fox
FC3BS
-20°C ~ 70°C
26 MHz
±10ppm
±10ppm
10 pF
FC3BSHHEF32.0-T3
Fox
FC3BS
-20°C ~ 70°C
32 MHz
±10ppm
±10ppm
10 pF
FC3BSHLGA27.0-1-T3
Fox
FC3BS
0°C ~ 50°C
27 MHz
±5ppm
±10ppm
12 pF
FC3VAEEGM50.0-T3
Fox
FC3VA
-40°C ~ 85°C
50 MHz
±20ppm
±20ppm
12 pF
FC3VREEDM38.4-T1
Fox
FC3VR
-40°C ~ 85°C
38.4 MHz
±20ppm
±20ppm
8 pF
FC3VREEDM38.88-T1
Fox
FC3VR
-40°C ~ 85°C
38.88 MHz
±20ppm
±20ppm
8 pF
FC3VREEDM40.0-T1
Fox
FC3VR
-40°C ~ 85°C
40 MHz
±20ppm
±20ppm
8 pF
FC3VREEDM48.0-T1
Fox
FC3VR
-40°C ~ 85°C
48 MHz
±20ppm
±20ppm
8 pF
FC3VREEEM38.4-T1
Fox
FC3VR
-40°C ~ 85°C
38.4 MHz
±20ppm
±20ppm
10 pF
FC3VREEGM36.0-T1
Fox
FC3VR
-40°C ~ 85°C
36 MHz
±20ppm
±20ppm
12 pF
FC3VREEGM38.4-T1
Fox
FC3VR
-40°C ~ 85°C
38.4 MHz
±20ppm
±20ppm
12 pF
FC3VREEGM38.88-T1
Fox
FC3VR
-40°C ~ 85°C
38.88 MHz
±20ppm
±20ppm
12 pF
FC3VREEGM40.0-T1
Fox
FC3VR
-40°C ~ 85°C
40 MHz
±20ppm
±20ppm
12 pF
FC3VREEGM50.0-T1
Fox
FC3VR
-40°C ~ 85°C
50 MHz
±20ppm
±20ppm
12 pF
FC4SDBBMF3.2-T1
Fox
FC4SD
-20°C ~ 70°C
3.2 MHz
±50ppm
±50ppm
20 pF
FC4SDCBGF24.0-T1
Fox
FC4SD
-20°C ~ 70°C
24 MHz
±50ppm
±30ppm
12 pF
FC4SDCBGF4.194304-T1
Fox
FC4SD
-20°C ~ 70°C
4.194304 MHz
±50ppm
±30ppm
12 pF
FC4SDCBGM8.0-T1
Fox
FC4SD
-40°C ~ 85°C
8 MHz
±50ppm
±30ppm
12 pF
FC4SDCBKF24.0-T1
Fox
FC4SD
-20°C ~ 70°C
24 MHz
±50ppm
±30ppm
16 pF
深圳市億金電子有限公司 SHENZHEN YIJIN ELECTRONICS CO;LTD
聯系人黃娜：18924600166
工作QQ:857950243
貿易通：yijindz2014
座機：0755-27876565
郵箱:yijindz@163.com
網址：
微信：yijindz，公眾號：NDKcrystal
地址：廣東省深圳市寶安區107國道旁甲岸路
跟此產品相關的產品 / Related Products
- LFTCXO075797Reel,IQD英國進口晶振,TCXO溫補有源晶振
- LFTCXO075797Reel,IQD英國進口晶振,TCXO溫補有源晶振,憑借高精度溫補晶振性能與可靠品質,廣泛適配多類場景.在通信領域,可作為5G基站,光纖傳輸設備的時鐘參考源,保障信號傳輸時延穩定,在導航領域,適配北斗/GPS定位終端,提升定位精度,在工業控制領域,為高精度PLC,數據采集儀提供時序支持,確保工業生產數據的精準同步.同時,卷盤包裝設計兼容SMT自動化生產線,可大幅提升生產效率,降低人工成本.
- Q-25.0-JXS21-20-10/15-T1-FU-WA-LF,2016小尺寸貼片晶振,JXS21諧振器
- Q-25.0-JXS21-20-10/15-T1-FU-WA-LF,2016小尺寸貼片晶振,JXS21諧振器,以25.0MHz高頻輸出與超小尺寸為核心優勢,擁有卓越的環境適應性.產品可在-40℃~85℃寬溫范圍內保持頻率穩定,從容應對高低溫極端工況,且通過T1-FU工藝優化,抗振動,抗沖擊性能遠超行業標準,有效避免外力對諧振性能的干擾.
- Q-0.032768-JTX310-12.5-10-T1-HMR-60-K-LF,JTX310型號晶振,Jauch歐美晶振
- Q-0.032768-JTX310-12.5-10-T1-HMR-60-K-LF,JTX310型號晶振,Jauch歐美晶振,針對消費電子,工業自動化及醫療應用晶振設備領域對低功耗時鐘信號的需求,Jauch歐美JTX310型號晶振憑借32.768kHz精準頻率與可靠性能,廣泛適配多類場景.在消費電子領域,可作為智能手環,電子鬧鐘的RTC時鐘源,確保時間顯示精準,在工業領域,適配PLC控制器,數據采集模塊的低功耗時序需求,保障設備穩定運行.
晶振系列
日本進口晶振
- 京瓷晶振
- 精工晶振
- 西鐵城晶振
- 村田晶振
- 大河晶振
- KDS Quartz crystal
- NDK Quartz crystal
- EPSON Quartz crystal
- 富士晶振
- NAKA晶振
- SMI晶振
- NJR晶振
臺產晶振
歐美晶振
- CTS晶振
- 微晶晶振
- 瑞康晶振
- 康納溫菲爾德晶振
- 高利奇晶振
- Jauch晶振
- AbraconCrystal晶振
- 維管晶振
- ECScrystal晶振
- 日蝕晶振
- 拉隆晶振
- 格林雷晶振
- SiTimeCrystal晶振
- IDTcrystal晶振
- PletronicsCrystal晶振
- StatekCrystal晶振
- AEK晶振
- AEL晶振
- Cardinal晶振
- Crystek晶振
- Euroquartz晶振
- 福克斯晶振
- Frequency晶振
- GEYER晶振
- ILSI晶振
- KVG晶振
- MMDCOMP晶振
- MtronPTI晶振
- QANTEK晶振
- QuartzCom晶振
- QuartzChnik晶振
- SUNTSU晶振
- Transko晶振
- WI2WI晶振
- 韓國三呢晶振
- ITTI晶振
- ACT晶振
- Milliren晶振
- Lihom晶振
- rubyquartz晶振
- Oscilent晶振
- SHINSUNG晶振
- PDI晶振
- C-TECH晶振
- IQD晶振
- Microchip晶振
- Silicon晶振
- Fortiming晶振
- CORE晶振
- NIPPON晶振
- NIC晶振
- QVS晶振
- Bomar晶振
- Bliley晶振
- GED晶振
- FILTRONETICS晶振
- STD晶振
- Q-Tech晶振
- Anderson晶振
- Wenzel晶振
- NEL晶振
- EM晶振
- PETERMANN晶振
- FCD-Tech晶振
- HEC晶振
- FMI晶振
- Macrobizes晶振
- AXTAL晶振
- 瑞薩renesas晶振
- Skyworks晶振
有源晶振
霧化片
貼片晶振
32.768K
- 32.768K有源晶振
- 8.0x3.8晶振
- 7.1x3.3晶振
- 7.0x1.5晶振
- 5.0x1.8晶振
- 4.1x1.5晶振
- 3.2x1.5晶振
- 2.0x1.2晶振
- 1.6x1.0晶振
- 1.2x1.0晶振
- 圓柱晶振
聲表面濾波器
石英晶振
KDS晶振
愛普生晶振
- EPSON 32.768K晶振
- EPSON無源晶振
- EPSON普通有源晶振
- EPSON壓控晶振
- EPSON溫補晶振
- EPSON壓控溫補晶振
- EPSON恒溫晶振
- EPSON差分晶振
- EPSON可編程晶振
億金公眾號
億金微信號
