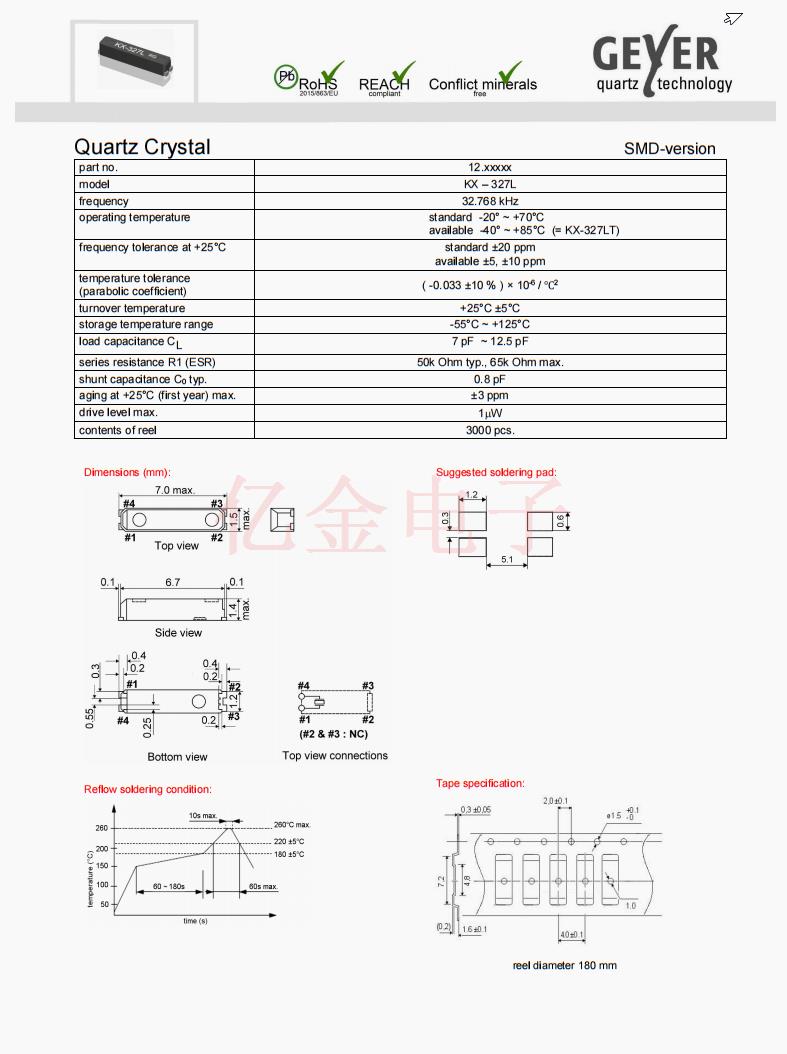

KX-327L晶振,12.87131,GEYER晶振,32.768KHz,12.5pF,±20ppm,7015諧振器
頻率：32.768kHz

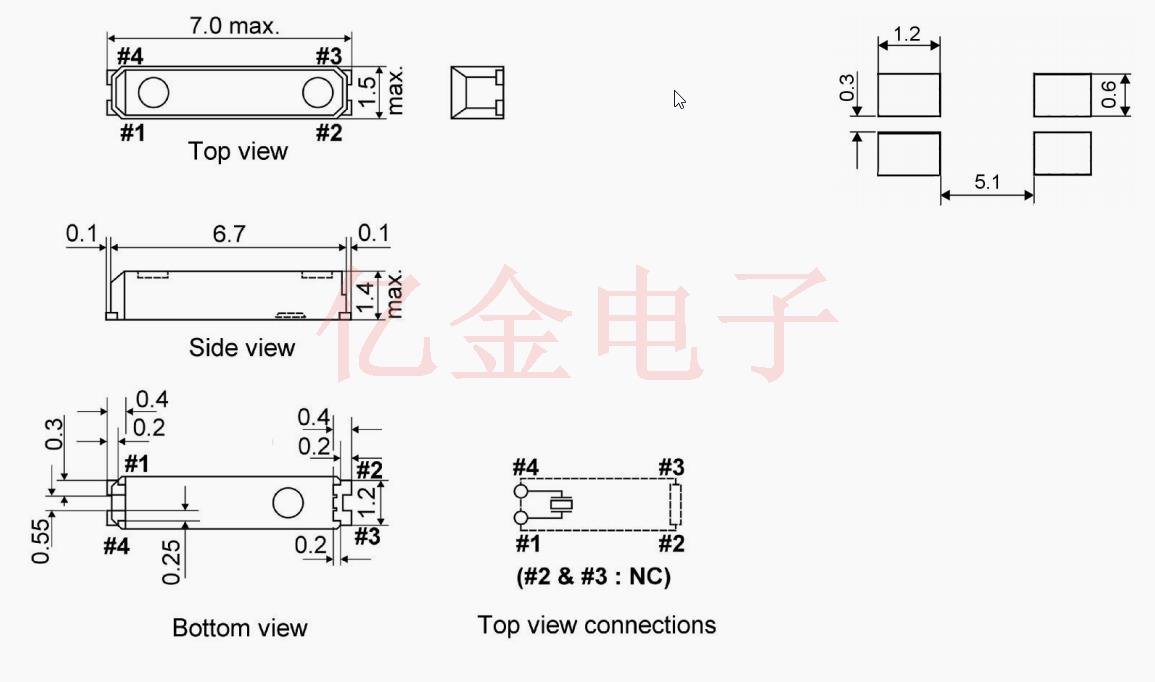

尺寸：7.0×1.5×1.4mm
KX-327L晶振,12.87131,GEYER晶振,32.768KHz,12.5pF,±20ppm,7015諧振器
進口GEYER晶振中編碼為12.87131的KX-327L晶振，其頻率為32.768KHz，頻率公差是±20ppm，負載電容為12.5pF，是進口無源晶振，其尺寸為7.0×1.5×1.4mm，一般也稱呼為7015諧振器、32.768K時鐘晶振。幾十年來，GEYER Electronic一直是頻率產品、石英晶體、振蕩器和陶瓷諧振器的領先制造商之一，成立于 1964 年，總部設在德國以及歐洲、亞洲和美國的其他地方，為全球客戶提供服務。
KX-327L晶振,12.87131,GEYER晶振,32.768KHz,12.5pF,±20ppm,7015諧振器
進口GEYER晶振中編碼為12.87131的KX-327L晶振，其頻率為32.768KHz，頻率公差是±20ppm，負載電容為12.5pF，是進口無源晶振，其尺寸為7.0×1.5×1.4mm，一般也稱呼為7015諧振器、32.768K時鐘晶振、7.0×1.5晶振。幾十年來，GEYER Electronic一直是頻率產品、石英晶體、振蕩器和陶瓷諧振器的領先制造商之一，成立于 1964 年，總部設在德國以及歐洲、亞洲和美國的其他地方，為全球客戶提供服務。GEYER的石英晶體和振蕩器主要在臺灣的工廠生產，在超過2000平方米的生產面積上，生產能力約為每月7500萬件，在日本和韓國還有其他較小的生產基地。
KX-327L晶振,12.87131,GEYER晶振,32.768KHz,12.5pF,±20ppm,7015諧振器
品牌
GEYER
編碼
12.87131
型號
KX-327L
頻率
32.768kHz
精度
±20ppm
負載
12.5pF
尺寸
7.0×1.5×1.4mm
工作溫度
-40℃~85℃
KX-327L晶振,12.87131,GEYER晶振,32.768KHz,12.5pF,±20ppm,7015諧振器
更多相關晶振參考
| 編碼 | 品牌 | 型號 | 尺寸 | 頻率 | 負載 |
| 12.87000 | GEYER | KX-327V | 1.25×1.05×0.5mm | 32.768kHz | 12.5pF |
| 12.87001 | GEYER | KX-327V | 1.25×1.05×0.5mm | 32.768kHz | 9pF |
| 12.87002 | GEYER | KX-327V | 1.25×1.05×0.5mm | 32.768kHz | 7pF |
| 12.87034 | GEYER | KX-327R | 2.0×1.2×0.6mm | 32.768kHz | 4pF |
| 12.87080 | GEYER | KX-327NH | 3.2×1.5×0.8mm | 32.768kHz | 12.5pF |
| 12.87081 | GEYER | KX-327NH | 3.2×1.5×0.8mm | 32.768kHz | 6pF |
| 12.87083 | GEYER | KX-327NH | 3.2×1.5×0.8mm | 32.768kHz | 6pF |
| 12.87086 | GEYER | KX-327NH | 3.2×1.5×0.8mm | 32.768kHz | 6pF |
| 12.87090 | GEYER | KX-327NH | 3.2×1.5×0.8mm | 32.768kHz | 7pF |
| 12.87095 | GEYER | KX-327NH | 3.2×1.5×0.8mm | 32.768kHz | 9pF |
| 12.87105 | GEYER | KX-327S | 8.2×3.8×2.5mm | 32.768kHz | 6pF |
| 12.87107 | GEYER | KX-327S | 8.2×3.8×2.5mm | 32.768kHz | 12.5pF |
| 12.87109 | GEYER | KX-327S | 8.2×3.8×2.5mm | 32.768kHz | 12pF |
| 12.87110 | GEYER | KX-327S | 8.2×3.8×2.5mm | 32.768kHz | 12.5pF |
| 12.87111 | GEYER | KX-327S | 8.2×3.8×2.5mm | 32.768kHz | 12.5pF |
| 12.87112 | GEYER | KX-327S | 8.2×3.8×2.5mm | 32.768kHz | 12.5pF |
| 12.87113 | GEYER | KX-327S | 8.2×3.8×2.5mm | 32.768kHz | 12.5pF |
| 12.87114 | GEYER | KX-327S | 8.2×3.8×2.5mm | 32.768kHz | 12.5pF |
| 12.87115 | GEYER | KX-327S | 8.2×3.8×2.5mm | 32.768kHz | 12.5pF |
| 12.87116 | GEYER | KX-327S | 8.2×3.8×2.5mm | 32.768kHz | 12.5pF |
| 12.87118 | GEYER | KX-327S | 8.2×3.8×2.5mm | 32.768kHz | 6pF |
| 12.87119 | GEYER | KX-327S | 8.2×3.8×2.5mm | 32.768kHz | 6pF |
| 12.87120 | GEYER | KX-327XS | 4.95×1.82×0.96mm | 32.768kHz | 12.5pF |
| 12.87121 | GEYER | KX-327XS | 4.95×1.82×0.96mm | 32.768kHz | 12.5pF |
| 12.87123 | GEYER | KX-327XS | 4.95×1.82×0.96mm | 32.768kHz | 6pF |
| 12.87126 | GEYER | KX-327XS | 4.95×1.82×0.96mm | 32.768kHz | 12.5pF |
| 12.87127 | GEYER | KX-327XS | 4.95×1.82×0.96mm | 32.768kHz | 6pF |
| 12.87128 | GEYER | KX-327XS | 4.95×1.82×0.96mm | 32.768kHz | 6pF |
| 12.87129 | GEYER | KX-327XS | 4.95×1.82×0.96mm | 32.768kHz | 12.5pF |
| 12.87130 | GEYER | KX-327L | 7.0×1.5×1.4mm | 32.768kHz | 12.5pF |
| 12.87131 | GEYER | KX-327L | 7.0×1.5×1.4mm | 32.768kHz | 12.5pF |
| 12.87132 | GEYER | KX-327L | 7.0×1.5×1.4mm | 32.768kHz | 7pF |
| 12.87133 | GEYER | KX-327L | 7.0×1.5×1.4mm | 32.768kHz | 12.5pF |
| 12.87134 | GEYER | KX-327L | 7.0×1.5×1.4mm | 32.768kHz | 7pF |
| 12.87135 | GEYER | KX-327L | 7.0×1.5×1.4mm | 32.768kHz | 7pF |
| 12.87136 | GEYER | KX-327L | 7.0×1.5×1.4mm | 32.768kHz | 12.5pF |
| 12.87137 | GEYER | KX-327L | 7.0×1.5×1.4mm | 32.768kHz | 9pF |
| 12.87138 | GEYER | KX-327L | 7.0×1.5×1.4mm | 32.768kHz | 12.5pF |
| 12.87139 | GEYER | KX-327L | 7.0×1.5×1.4mm | 32.768kHz | 7pF |
| 12.87143 | GEYER | KX-327NH | 3.2×1.5×0.8mm | 32.768kHz | 9pF |
| 12.87144 | GEYER | KX-327NH | 3.2×1.5×0.8mm | 32.768kHz | 7pF |
| 12.87145 | GEYER | KX-327NH | 3.2×1.5×0.8mm | 32.768kHz | 12.5pF |
| 12.87146 | GEYER | KX-327NH | 3.2×1.5×0.8mm | 32.768kHz | 9pF |
| 12.87147 | GEYER | KX-327NH | 3.2×1.5×0.8mm | 32.768kHz | 7pF |
| 12.87148 | GEYER | KX-327NH | 3.2×1.5×0.8mm | 32.768kHz | 7pF |
| 12.87149 | GEYER | KX-327NH | 3.2×1.5×0.8mm | 32.768kHz | 9pF |
| 12.87150 | GEYER | KX-327NH | 3.2×1.5×0.8mm | 32.768kHz | 12.5pF |
| 12.87151 | GEYER | KX-327NH | 3.2×1.5×0.8mm | 32.768kHz | 9pF |
| 12.87152 | GEYER | KX-327NH | 3.2×1.5×0.8mm | 32.768kHz | 12.5pF |
| 12.87153 | GEYER | KX-327NH | 3.2×1.5×0.8mm | 32.768kHz | 7pF |
| 12.87155 | GEYER | KX-327NH | 3.2×1.5×0.8mm | 32.768kHz | 12.5pF |
| 12.87157 | GEYER | KX-327NH | 3.2×1.5×0.8mm | 32.768kHz | 12.5pF |
| 12.87158 | GEYER | KX-327NH | 3.2×1.5×0.8mm | 32.768kHz | 12.5pF |
| 12.87159 | GEYER | KX-327NH | 3.2×1.5×0.8mm | 32.768kHz | 12.5pF |
| 12.87160 | GEYER | KX-327R | 2.0×1.2×0.6mm | 32.768kHz | 12.5pF |
| 12.87161 | GEYER | KX-327R | 2.0×1.2×0.6mm | 32.768kHz | 12.5pF |
| 12.87163 | GEYER | KX-327R | 2.0×1.2×0.6mm | 32.768kHz | 7pF |
| 12.87164 | GEYER | KX-327R | 2.0×1.2×0.6mm | 32.768kHz | 9pF |
| 12.87165 | GEYER | KX-327R | 2.0×1.2×0.6mm | 32.768kHz | 9pF |
| 12.87166 | GEYER | KX-327R | 2.0×1.2×0.6mm | 32.768kHz | 12.5pF |
| 12.87167 | GEYER | KX-327R | 2.0×1.2×0.6mm | 32.768kHz | 12.5pF |
| 12.87168 | GEYER | KX-327R | 2.0×1.2×0.6mm | 32.768kHz | 9pF |
| 12.87169 | GEYER | KX-327R | 2.0×1.2×0.6mm | 32.768kHz | 9pF |
| 12.87180 | GEYER | KX-327NH | 3.2×1.5×0.8mm | 32.768kHz | 9pF |
| 12.87181 | GEYER | KX-327NH | 3.2×1.5×0.8mm | 32.768kHz | 12.5pF |
| 12.87182 | GEYER | KX-327NH | 3.2×1.5×0.8mm | 32.768kHz | 7pF |
| 12.87183 | GEYER | KX-327NH | 3.2×1.5×0.8mm | 32.768kHz | 12.5pF |
| 12.87186 | GEYER | KX-327R | 2.0×1.2×0.6mm | 32.768kHz | 12.5pF |
| 12.87187 | GEYER | KX-327R | 2.0×1.2×0.6mm | 32.768kHz | 6pF |
| 12.87188 | GEYER | KX-327R | 2.0×1.2×0.6mm | 32.768kHz | 9pF |
