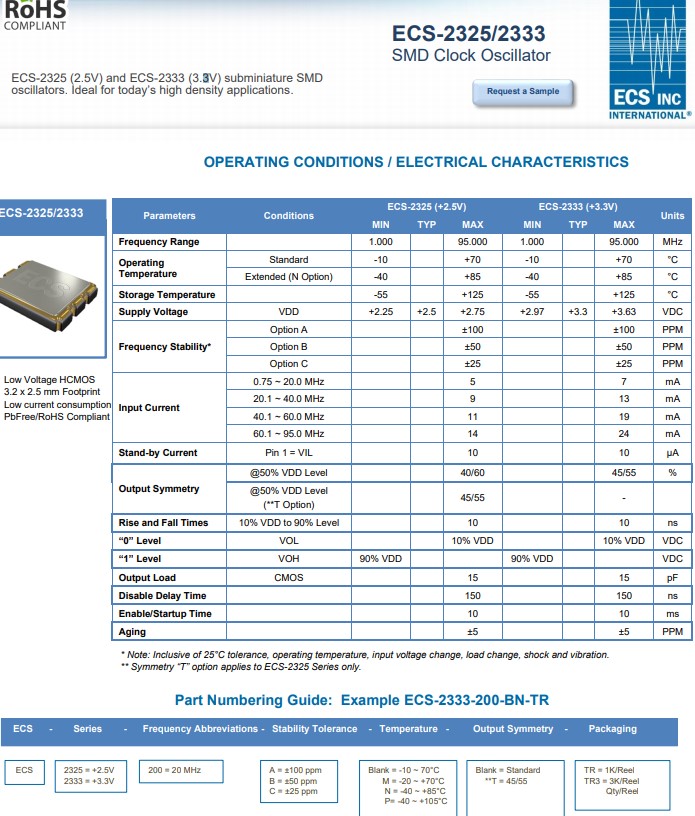

伊西斯晶振公司獨家首發的高品質SMD振蕩器ECS-2333-080-BN-TR
伊西斯晶振公司獨家首發的高品質SMD振蕩器ECS-2333-080-BN-TR，In both cases, the tank circuit is tuned to resonate at some frequency between the fundamental and the desired frequency. This isolates the desired frequency and shunts the rest to ground, leaving only the desired frequency at the output of the oscillator.
When designing an oscillator circuit or laying out your board for and oscillator, certain design considerations should be followed. It is always recommended to avoid parallel traces in order to reduce tray capacitance. All traces should be kept as short as possible and components should be isolated in order to prevent coupling. Ground planes should be used to isolate signals.
諧振電路都被調諧為在基頻和所需頻率之間的某個頻率上諧振。這隔離了所需的頻率并將其余頻率分流到地，僅在振蕩器的輸出端留下所需的頻率。隨之市場對于石英晶振產品的需求只增不減，同時也能夠在市場獲得大量的機會，ECS堅守初心將最好的品質給到每一位用戶。
伊西斯晶振公司獨家首發的高品質SMD振蕩器ECS-2333-080-BN-TR，在設計石英晶體振蕩器電路或為振蕩器布置電路板時，應遵循某些設計注意事項。始終建議避免平行走線以減少托盤電容。所有走線應盡可能短，并且應隔離組件以防止耦合。應使用接地層來隔離信號。
| Manufacturer Part Number原廠代碼 | Manufacturer品牌 | Series型號 | Frequency 頻率 | Operating Temperature 工作溫度 |
| ECS-2333-245.7-BN-TR | ECS晶振 | ECS-2333 | 24.576MHz | -40°C ~ 85°C |
| ECS-2333-245.7-BN-TR | ECS晶振 | ECS-2333 | 24.576MHz | -40°C ~ 85°C |
| ECS-2333-080-BN-TR | ECS晶振 | ECS-2333 | 8MHz | -40°C ~ 85°C |
| ECS-2333-080-BN-TR | ECS晶振 | ECS-2333 | 8MHz | -40°C ~ 85°C |
| ECS-2333-080-BN-TR | ECS晶振 | ECS-2333 | 8MHz | -40°C ~ 85°C |
| ECS-2333-040-BN-TR | ECS晶振 | ECS-2333 | 4MHz | -40°C ~ 85°C |
| ECS-2333-040-BN-TR | ECS晶振 | ECS-2333 | 4MHz | -40°C ~ 85°C |
| ECS-2333-040-BN-TR | ECS晶振 | ECS-2333 | 4MHz | -40°C ~ 85°C |
| ECS-2333-120-BN-TR | ECS晶振 | ECS-2333 | 12MHz | -40°C ~ 85°C |
| ECS-2333-120-BN-TR | ECS晶振 | ECS-2333 | 12MHz | -40°C ~ 85°C |
| ECS-2333-120-BN-TR |
ECS石英晶體振蕩器 |
ECS-2333 | 12MHz | -40°C ~ 85°C |
| ECS-3953M-200-B-TR | ECS晶振 | ECS-3953M | 20MHz | -10°C ~ 70°C |
| ECS-3953M-200-B-TR | ECS晶振 | ECS-3953M | 20MHz | -10°C ~ 70°C |
| ECS-3953M-200-B-TR | ECS晶振 | ECS-3953M | 20MHz | -10°C ~ 70°C |
| ECS-3953M-160-B-TR | ECS晶振 | ECS-3953M | 16MHz | -10°C ~ 70°C |
| ECS-3953M-160-B-TR | ECS晶振 | ECS-3953M | 16MHz | -10°C ~ 70°C |
| ECS-3953M-160-B-TR | ECS晶振 | ECS-3953M | 16MHz | -10°C ~ 70°C |
