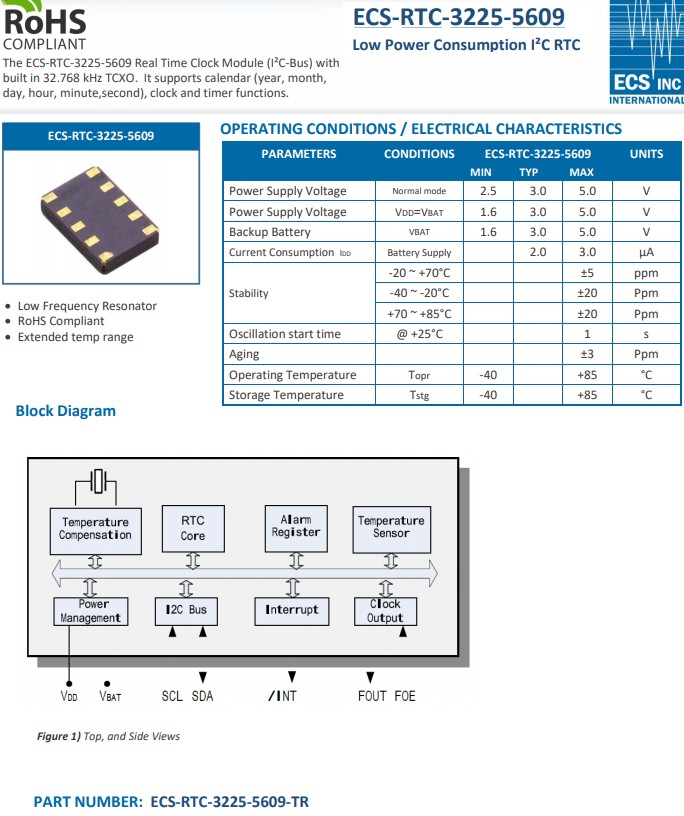

ECS晶振ECS-RTC-3225-5609是一款具有低功耗和嵌入式32.768kHz TCXO溫補晶振的小型實時時鐘(RTC)。

ECS-RTC-3225-5609是一款I2C總線接口實時時鐘(RTC)，具有低功耗和嵌入式32.768kHz晶振 TCXO。小體積晶振尺寸3.2mmx2.5mmx1.0mm封裝，電源電壓：1.6～5.0V，低電流消耗：2uA（典型值），工作溫度范圍：-40℃至+85℃，具有超小型，輕薄型，低抖動，低功耗，高穩定性，可調周期的定時器輸出功能等特點，后備電源自動切換功能，精密的溫度傳感器和溫度補償電路確保時鐘精度。RTC支持日歷、時鐘和定時器功能，包括閏年補償。適用于便攜式、電腦，服務器，嵌入式系統，物聯網，超低功耗，數字時鐘，電池供電和小尺寸電子設備。

超低功耗溫補晶振ECS-RTC-3225-5609-TR特別適用于數字時鐘應用

原廠代碼	品牌	貼片晶振	頻率	工作溫度
ECS-3225S33-260-FN-TR	ECS Crystal	ECS-3225S	26MHz	-40°C ~ 85°C
ECS-3225S33-260-FN-TR	ECS Crystal	ECS-3225S	26MHz	-40°C ~ 85°C
ECS-3225S33-260-FN-TR	ECS Crystal	ECS-3225S	26MHz	-40°C ~ 85°C
ECS-3225S25-240-FN-TR	ECS Crystal	ECS-3225S	24MHz	-40°C ~ 85°C
ECS-3225S25-240-FN-TR	ECS Crystal	ECS-3225S	24MHz	-40°C ~ 85°C
ECS-3225S25-240-FN-TR	ECS Crystal	ECS-3225S	24MHz	-40°C ~ 85°C
ECS-3225S18-200-FN-TR	ECS Crystal	ECS-3225S	20MHz	-40°C ~ 85°C
ECS-3225S18-200-FN-TR	ECS Crystal	ECS-3225S	20MHz	-40°C ~ 85°C
ECS-3225S18-200-FN-TR	ECS Crystal	ECS-3225S	20MHz	-40°C ~ 85°C
ECS-3225S18-240-FN-TR	ECS Crystal	ECS-3225S	24MHz	-40°C ~ 85°C
ECS-3225S18-240-FN-TR	ECS Crystal	ECS-3225S	24MHz	-40°C ~ 85°C
ECS-3225S18-240-FN-TR	ECS Crystal	ECS-3225S	24MHz	-40°C ~ 85°C
ECS-TXO-3225-200-TR	ECS Crystal	ECS-TXO-3225	20MHz	-30°C ~ 85°C
ECS-TXO-3225-200-TR	ECS Crystal	ECS-TXO-3225	20MHz	-30°C ~ 85°C
ECS-TXO-3225-200-TR	ECS Crystal	ECS-TXO-3225	20MHz	-30°C ~ 85°C
ECS-3225S33-200-FN-TR	ECS Crystal	ECS-3225S	20MHz	-40°C ~ 85°C
ECS-3225S33-200-FN-TR	ECS Crystal	ECS-3225S	20MHz	-40°C ~ 85°C
ECS-3225S33-200-FN-TR	ECS Crystal	ECS-3225S	20MHz	-40°C ~ 85°C
ECS-3225S18-260-FN-TR	ECS晶振	ECS-3225S	26MHz	-40°C ~ 85°C
ECS-3225S18-260-FN-TR	ECS Crystal	ECS-3225S	26MHz	-40°C ~ 85°C
ECS-3225S18-260-FN-TR	ECS Crystal	ECS-3225S	26MHz	-40°C ~ 85°C
ECS-3225S33-240-FN-TR	ECS Crystal	ECS-3225S	24MHz	-40°C ~ 85°C
ECS-3225S33-240-FN-TR	ECS Crystal	ECS-3225S	24MHz	-40°C ~ 85°C
ECS-3225S33-240-FN-TR	ECS Crystal	ECS-3225S	24MHz	-40°C ~ 85°C
ECS-3225S33-200-EN-TR	ECS Crystal	ECS-3225S	20MHz	-40°C ~ 85°C
ECS-3225S33-240-EN-TR	ECS Crystal	ECS-3225S	24MHz	-40°C ~ 85°C
ECS-3225S33-260-EN-TR	ECS Crystal	ECS-3225S	26MHz	-40°C ~ 85°C
ECS-3225S30-200-EN-TR	ECS Crystal	ECS-3225S	20MHz	-40°C ~ 85°C
ECS-3225S30-240-EN-TR	ECS Crystal	ECS-3225S	24MHz	-40°C ~ 85°C
ECS-3225S30-260-EN-TR	ECS Crystal	ECS-3225S	26MHz	-40°C ~ 85°C
ECS-3225S25-200-EN-TR	ECS Crystal	ECS-3225S	20MHz	-40°C ~ 85°C
ECS-3225S25-240-EN-TR	ECS Crystal	ECS-3225S	24MHz	-40°C ~ 85°C
ECS-3225S25-260-EN-TR	ECS Crystal	ECS-3225S	26MHz	-40°C ~ 85°C
ECS-3225S18-200-EN-TR	ECS Crystal	ECS-3225S	20MHz	-40°C ~ 85°C
ECS-3225S18-240-EN-TR	ECS Crystal	ECS-3225S	24MHz	-40°C ~ 85°C
ECS-3225S18-260-EN-TR	ECS Crystal	ECS-3225S	26MHz	-40°C ~ 85°C
ECS-3225S30-200-FN-TR	ECS Crystal	ECS-3225S	20MHz	-40°C ~ 85°C
ECS-3225S30-240-FN-TR	ECS Crystal	ECS-3225S	24MHz	-40°C ~ 85°C
ECS-3225S30-260-FN-TR	ECS Crystal	ECS-3225S	26MHz	-40°C ~ 85°C
ECS-3225S25-200-FN-TR	ECS Crystal	ECS-3225S	20MHz	-40°C ~ 85°C
ECS-3225S25-260-FN-TR	ECS Crystal	ECS-3225S	26MHz	-40°C ~ 85°C

超低功耗溫補晶振ECS-RTC-3225-5609-TR特別適用于數字時鐘應用

32.768k晶振是款實時時鐘晶振，它的作用是可以產生時序電路基準信號。而之所以選用32.768K是因為它是2的15次冪，是因為可以很精確的得到一秒的計時。不僅如此，包括所有的實時時鐘晶振一般都是32.768或其倍頻。貼片32.768K晶振的負載電容都是12.5PF。常用32.768K晶振的電子產品有智能手機、智能手表、安防和可穿戴設備等等。也還有很多生活類、工業類電子也會常用到這款頻率的進口晶振。
