C1E-24.000-10-1010-R-24MHz-10PPM-10PF-2016-AKER
頻率：24MHZ

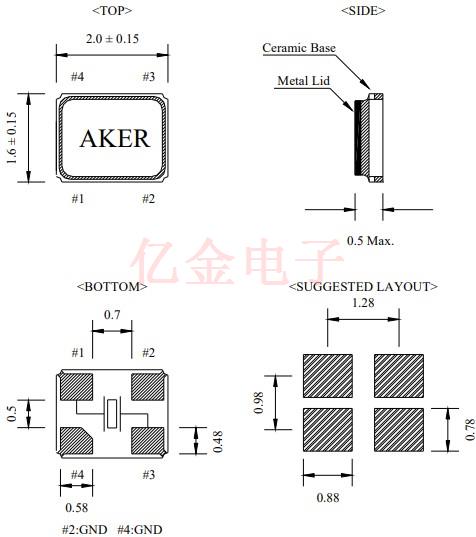

尺寸：2.0*1.6mm
C1E-24.000-10-1010-R-24MHz-10PPM-10PF-2016-AKER，貼片石英晶振，臺灣晶振,貼片晶振,石英晶振,AKER晶振,C1E-24.000-10-1010-R晶振,高品質晶振,四腳晶振,無源晶振,石英晶振,小尺寸晶振,2016晶振,智能穿戴設備晶振,家庭多媒體系統晶振,微處理器晶體，單元低輪廓，2.0 x 1.6毫米表面安裝，-4墊通用產品規格，
訂購熱線：0755-27876565
C1E-24.000-10-1010-R-24MHz-10PPM-10PF-2016-AKER，貼片石英晶振，臺灣晶振,貼片晶振,石英晶振,AKER晶振,C1E-24.000-10-1010-R晶振,高品質晶振,四腳晶振,無源晶振,石英晶振,小尺寸晶振,2016晶振,智能穿戴設備晶振,家庭多媒體系統晶振,微處理器晶體，單元低輪廓，2.0 x 1.6毫米表面安裝，-4墊通用產品規格，

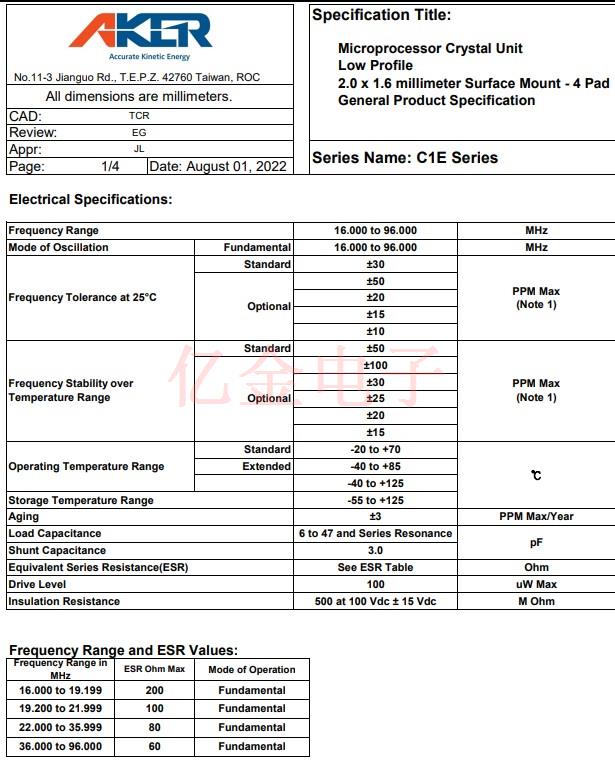

C1E-24.000-10-1010-R-24MHz-10PPM-10PF-2016-AKER
| 頻率范圍 | 16.000 to 96.000 | MHz | |||||||||||||||||||||||||
| 工作模式 | Fundamental | 16.000 to 96.000 | MHz | ||||||||||||||||||||||||
| 頻率容差 at 25°C | Standard | ±30 | PPM Max (Note 1) | ||||||||||||||||||||||||
| Optional | ±50 | ||||||||||||||||||||||||||
| ±20 | |||||||||||||||||||||||||||
| ±15 | |||||||||||||||||||||||||||
| ±10 | |||||||||||||||||||||||||||
| 在溫度范圍內的頻率偏差度 | Standard | ±50 | PPM Max (Note 1) | ||||||||||||||||||||||||
| Optional | ±100 | ||||||||||||||||||||||||||
| ±30 | |||||||||||||||||||||||||||
| ±25 | |||||||||||||||||||||||||||
| ±20 | |||||||||||||||||||||||||||
| ±15 | |||||||||||||||||||||||||||
| 工作溫度范圍 | Standard | -20 to +70 | ℃ | ||||||||||||||||||||||||
| Extended | -40 to +85 | ||||||||||||||||||||||||||
| -40 to +125 | |||||||||||||||||||||||||||
| 儲存溫度范圍 | -55 to +125 | ||||||||||||||||||||||||||
| 老化 | ±3 | PPM Max/Year | |||||||||||||||||||||||||
| 負載電容 | 6 to 47 and Series Resonance | pF | |||||||||||||||||||||||||
| 并聯電阻 | 3.0 | ||||||||||||||||||||||||||
| 等效串聯電阻(ESR) | See ESR Table | Ohm | |||||||||||||||||||||||||
| 驅動電平 | 100 | uW Max | |||||||||||||||||||||||||
| 絕緣電阻 | 500 at 100 Vdc ± 15 Vdc |
M Ohm |
|||||||||||||||||||||||||
C1E-24.000-10-1010-R-24MHz-10PPM-10PF-2016-AKER
| AKER制造商零件編號 | 供應商 | 系列 | 頻率 | 頻率穩定性 | 頻率容差 | 負載電容 |
| C3E-8.000-18-3030-R | Aker晶振 | C3E | 8 MHz | ±30ppm | ±30ppm | 18pF |
| C3E-25.000-8-1015-X-R | Aker晶振 | C3E | 25 MHz | ±15ppm | ±10ppm | 8pF |
| C3E-24.576-12-3030-X-R | Aker晶振 | C3E | 24.576 MHz | ±30ppm | ±30ppm | 12pF |
| C2E-25.000-10-3030-X-M | Aker晶振 | C2E | 25 MHz | ±30ppm | ±30ppm | 10pF |
| C3E-16.000-8-1015-R | Aker晶振 | C3E | 16 MHz | ±15ppm | ±10ppm | 8pF |
| C3E-12.000-12-1015-R | Aker晶振 | C3E | 12 MHz | ±15ppm | ±10ppm | 12pF |
| C3E-16.000-8-50100-X1-R | Aker晶振 | C3E | 16 MHz | ±100ppm | ±50ppm | 8pF |
| C3E-12.000-18-3030-X-R | Aker晶振 | C3E | 12 MHz | ±30ppm | ±30ppm | 18pF |
| C1E-25.000-20-2030-R | Aker晶振 | C1E | 25 MHz | ±30ppm | ±20ppm | 20pF |
| C2E-16.000-8-1530-X-R | Aker晶振 | C2E | 16 MHz | ±30ppm | ±15ppm | 8pF |
| C3E-8.000-10-3030-R | Aker晶振 | C3E | 8 MHz | ±30ppm | ±30ppm | 10pF |
| C3E-24.000-12-1015-X-R | Aker晶振 | C3E | 24 MHz | ±15ppm | ±10ppm | 12pF |
| C3E-32.000-10-1015-R | Aker晶振 | C3E | 32 MHz | ±15ppm | ±10ppm | 10pF |
| C3E-25.000-12-3030-X-R | Aker晶振 | C3E | 25 MHz | ±30ppm | ±30ppm | 12pF |
| C3E-32.000-8-1015-X-R | Aker晶振 | C3E | 32 MHz | ±15ppm | ±10ppm | 8pF |
| C3E-24.000-10-1010-R | Aker晶振 | C3E | 24 MHz | ±10ppm | ±10ppm | 10pF |
| C3E-12.000-12-3030-X-R | Aker晶振 | C3E | 12 MHz | ±30ppm | ±30ppm | 12pF |
| C3E-25.000-8-1010-R | Aker晶振 | C3E | 25 MHz | ±10ppm | ±10ppm | 8pF |
| C3E-8.000-18-3030-X-R | Aker晶振 | C3E | 8 MHz | ±30ppm | ±30ppm | 18pF |
| C3E-16.000-12-3030-X-R | Aker晶振 | C3E | 16 MHz | ±30ppm | ±30ppm | 12pF |
| C1E-32.000-8-1515-R | Aker晶振 | C1E | 32 MHz | ±15ppm | ±15ppm | 8pF |
| C3E-13.560-12-1530-X-R | Aker晶振 | C3E | 13.56 MHz | ±30ppm | ±15ppm | 12pF |
| C2E-24.000-10-1010-R | Aker晶振 | C2E | 24 MHz | ±10ppm | ±10ppm | 10pF |
| C1E-24.000-10-1010-R | Aker晶振 | C1E | 24 MHz | ±10ppm | ±10ppm | 10pF |
| C3E-25.000-10-3030-X-R | Aker晶振 | C3E | 25 MHz | ±30ppm | ±30ppm | 10pF |
| C3E-25.000-18-2030-R | Aker晶振 | C3E | 25 MHz | ±30ppm | ±20ppm | 18pF |
| C3E-24.000-8-1015-R | Aker晶振 | C3E | 24 MHz | ±15ppm | ±10ppm | 8pF |
| C3E-8.000-10-3030-X-R | Aker晶振 | C3E | 8 MHz | ±30ppm | ±30ppm | 10pF |
| C3E-16.000-12-1015-R | Aker晶振 | C3E | 16 MHz | ±15ppm | ±10ppm | 12pF |
| C3E-16.000-12-3030-R | Aker晶振 | C3E | 16 MHz | ±30ppm | ±30ppm | 12pF |
| C3E-24.000-10-1015-X-R | Aker晶振 | C3E | 24 MHz | ±15ppm | ±10ppm | 10pF |
| C3E-25.000-18-3030-R | Aker晶振 | C3E | 25 MHz | ±30ppm | ±30ppm | 18pF |
| C2E-25.000-10-3030-X-R | Aker晶振 | C2E | 25 MHz | ±30ppm | ±30ppm | 10pF |
| C3E-32.000-12-1010-R | Aker晶振 | C3E | 32 MHz | ±10ppm | ±10ppm | 12pF |
| C3E-12.000-8-3030-R | Aker晶振 | C3E | 12 MHz | ±30ppm | ±30ppm | 8pF |
| C3E-32.000-10-1010-R | Aker晶振 | C3E | 32 MHz | ±10ppm | ±10ppm | 10pF |
| C2E-16.000-10-1010-R | Aker晶振 | C2E | 16 MHz | ±10ppm | ±10ppm | 10pF |
| C3E-12.000-8-1010-R | Aker晶振 | C3E | 12 MHz | ±10ppm | ±10ppm | 8pF |
| C3E-24.000-12-1530-X-R | Aker晶振 | C3E | 24 MHz | ±30ppm | ±15ppm | 12pF |
| C3E-12.000-8-1520-R | Aker晶振 | C3E | 12 MHz | ±20ppm | ±15ppm | 8pF |
| C3E-24.000-18-1010-R | Aker晶振 | C3E | 24 MHz | ±10ppm | ±10ppm | 18pF |
| C3E-20.000-12-3030-X-R | Aker晶振 | C3E | 20 MHz | ±30ppm | ±30ppm | 12pF |
| C1E-32.000-10-1015-X-R | Aker晶振 | C1E | 32 MHz | ±15ppm | ±10ppm | 10pF |
| C1E-24.000-10-1015-M | Aker晶振 | C1E | 24 MHz | ±15ppm | ±10ppm | 10pF |
| C3E-24.576-12-1010-R | Aker晶振 | C3E | 24.576 MHz | ±10ppm | ±10ppm | 12pF |
| C3E-25.000-8-1015-R | Aker晶振 | C3E | 25 MHz | ±15ppm | ±10ppm | 8pF |
| C3E-12.000-18-3030-R | Aker晶振 | C3E | 12 MHz | ±30ppm | ±30ppm | 18pF |
| C3E-16.000-12-1015-X-R | Aker晶振 | C3E | 16 MHz | ±15ppm | ±10ppm | 12pF |
| C1E-32.000-8-1015-X-R | Aker晶振 | C1E | 32 MHz | ±15ppm | ±10ppm | 8pF |
| C3E-27.120-12-1010-R | Aker晶振 | C3E | 27.12 MHz | ±10ppm | ±10ppm | 12pF |
| C3E-25.000-8-1530-X-R | Aker晶振 | C3E | 25 MHz | ±30ppm | ±15ppm | 8pF |
| C3E-16.000-12-1015-X-M | Aker晶振 | C3E | 16 MHz | ±15ppm | ±10ppm | 12pF |
| C3E-24.000-12-3030-X-R | Aker晶振 | C3E | 24 MHz | ±30ppm | ±30ppm | 12pF |
| C3E-32.000-12-1530-X-R | Aker晶振 | C3E | 32 MHz | ±30ppm | ±15ppm | 12pF |
| C3E-25.000-8-1520-R | Aker晶振 | C3E | 25 MHz | ±20ppm | ±15ppm | 8pF |
| C3E-20.000-10-1530-X-R | Aker晶振 | C3E | 20 MHz | ±30ppm | ±15ppm | 10pF |
| C3E-40.000-10-1015-X-R | Aker晶振 | C3E | 40 MHz | ±15ppm | ±10ppm | 10pF |
| C3E-26.000-10-1015-X-R3 | Aker晶振 | C3E | 26 MHz | ±15ppm | ±10ppm | 10pF |
| C3E-16.000-18-3030-X-R | Aker晶振 | C3E | 16 MHz | ±30ppm | ±30ppm | 18pF |
| C1E-24.000-10-1015-R | Aker晶振 | C1E | 24 MHz | ±15ppm | ±10ppm | 10pF |
| C2E-16.000-12-3030-X-R | Aker晶振 | C2E | 16 MHz | ±30ppm | ±30ppm | 12pF |
| C3E-8.000-12-1020-R | Aker晶振 | C3E | 8 MHz | ±20ppm | ±10ppm | 12pF |
| C3E-8.000-20-1020-R | Aker晶振 | C3E | 8 MHz | ±20ppm | ±10ppm | 12pF |
| C3E-8.000-18-1020-R | Aker晶振 | C3E | 8 MHz | ±20ppm | ±10ppm | 18pF |
| C3E-8.000-10-1020-M | Aker晶振 | C3E | 8 MHz | ±20ppm | ±10ppm | 10pF |
| C3E-8.000-18-1020-X-R | Aker晶振 | C3E | 8 MHz | ±20ppm | ±10ppm | 18pF |
| C2E-12.000-18-1020-X-R | Aker晶振 | C2E | 12 MHz | ±20ppm | ±10ppm | 18pF |
| C2E-12.000-18-1020-R | Aker晶振 | C2E | 12 MHz | ±20ppm | ±10ppm | 18pF |
| C3E-25.000-20-1015-X-R | Aker晶振 | C3E | 25 MHz | ±15ppm | ±10ppm | 20pF |
| C3E-24.000-9-1015-X-R | Aker晶振 | C3E | 24 MHz | ±15ppm | ±10ppm | 9pF |
| C3E-16.000-9-1015-X-R | Aker晶振 | C3E | 16 MHz | ±15ppm | ±10ppm | 9pF |
| C3E-24.000-9-1010-R | Aker晶振 | C3E | 24 MHz | ±10ppm | ±10ppm | 9pF |
| C3E-16.000-9-1010-R | Aker晶振 | C3E | 16 MHz | ±10ppm | ±10ppm | 9pF |
| C2E-19.200-13-2030-X-R | Aker晶振 | C2E | 19.2 MHz | ±30ppm | ±20ppm | 13pF |
