ECS-115.2-18-5PXEN|11.52MHz|18PF|30PPM|49SMD|CSM-7X|ECS
頻率：11.52MHZ
尺寸：11.35X4.8mm

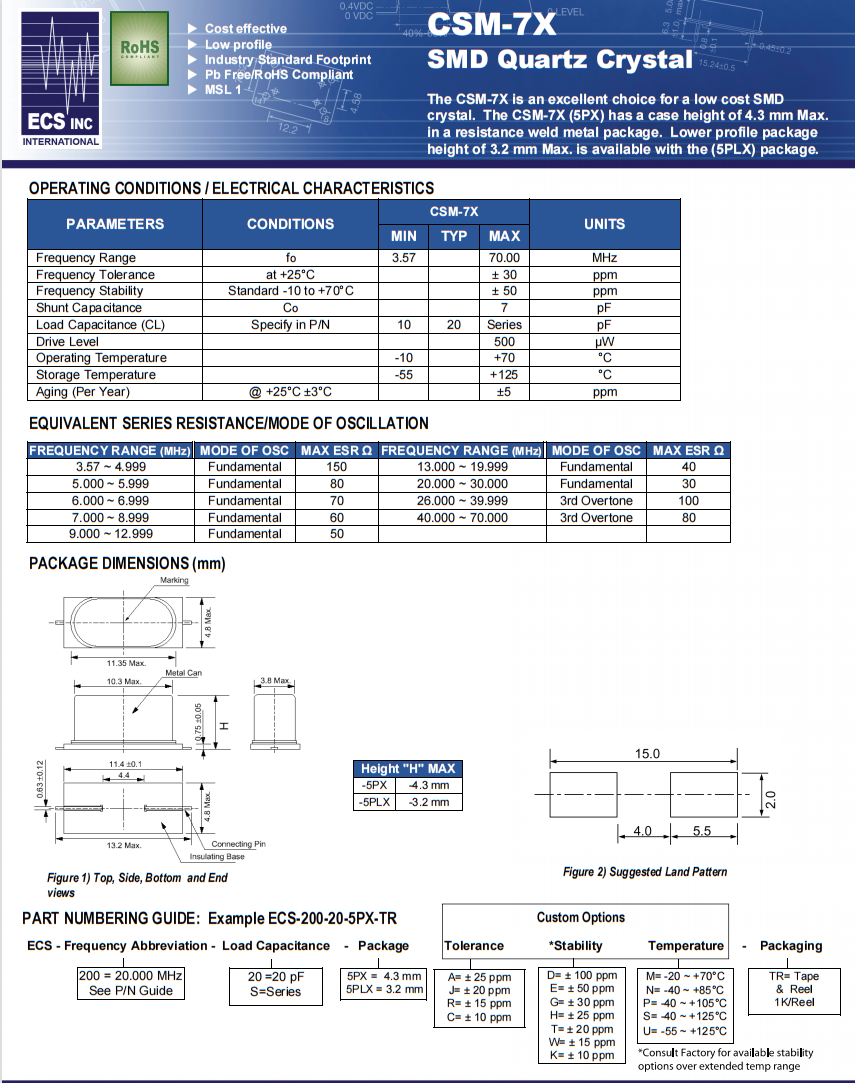

ECS-115.2-18-5PXEN|11.52MHz|18PF|30PPM|49SMD|CSM-7X|ECS，國外進口晶振，CSM-7X是低成本SMD晶體的絕佳選擇。CSM-7X（5PX）的外殼高度為4.3 mm。在一個電阻焊縫金屬封裝中。較低的輪廓包裝高度，最大3.2 mm。可與（5PLX）包。成本效益高，低調的外表，行業標準， 無鉛/RoHS
訂購熱線：0755-27876565
ECS-115.2-18-5PXEN|11.52MHz|18PF|30PPM|49SMD|CSM-7X|ECS，國外進口晶振，CSM-7X是低成本SMD晶體的絕佳選擇。CSM-7X（5PX）的外殼高度為4.3 mm。在一個電阻焊縫金屬封裝中。較低的輪廓包裝高度，最大3.2 mm。可與（5PLX）包。成本效益高，低調的外表，行業標準， 無鉛/RoHS
| 參數 | 環境 | CSM-7X | 單位 | ||
| 最小值 | 典型的 | 最大值 | |||
| 頻率 | fo | 3.57 | 70.00 | MHz | |
| 頻率容差 | at +25°C | ± 30 | ppm | ||
| 頻率穩定度 | Standard -10 to +70°C | ± 50 | ppm | ||
| 并聯電容 | Co | 7 | pF | ||
| 負載電容 | Specify in P/N | 10 | 20 | Series | pF |
| 驅動電平 | 500 | µW | |||
| 工作溫度 | --10 | +70 | °C | ||
| 儲存溫度 | --55 | +125 | °C | ||
| 老化 | @ +25°C ±3°C | ±5 | ppm | ||
| ECS原廠編碼 | 型號 | 頻率 | 頻率容差 | 頻率偏差度 | 負載電容 | 工作溫度 |
| ECS-100-18-5PX-TR | CSM-7X | 10MHz | ±50ppm | ±30ppm | 18pF | -10°C ~ 70°C |
| ECS-100-S-5PX-TR | CSM-7X | 10MHz | ±50ppm | ±30ppm | Series | -10°C ~ 70°C |
| ECS-102.4-18-5PXEN | CSM-7X | 10.24MHz | ±50ppm | ±30ppm | 18pF | -40°C ~ 85°C |
| ECS-102.45-16-5PX-TR | CSM-7X | 10.245MHz | ±50ppm | ±30ppm | 16pF | -10°C ~ 70°C |
| ECS-110.5-18-5PXEN-TR | CSM-7X | 11.0592MHz | ±50ppm | ±30ppm | 18pF | -40°C ~ 85°C |
| ECS-110.5-20-5PX-TR | CSM-7X | 11.0592MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-110.5-32-5PX-TR | CSM-7X | 11.0592MHz | ±50ppm | ±30ppm | 32pF | -10°C ~ 70°C |
| ECS-110.5-S-5PX-TR | CSM-7X | 11.0592MHz | ±50ppm | ±30ppm | Series | -10°C ~ 70°C |
| ECS-110-18-5PXEN-TR | CSM-7X | 11MHz | ±50ppm | ±30ppm | 18pF | -40°C ~ 85°C |
| ECS-115.2-18-5PXEN | CSM-7X | 11.52MHz | ±50ppm | ±30ppm | 18pF | -40°C ~ 85°C |
| ECS-120.003-18-5PXEN | CSM-7X | 12.000393MHz | ±50ppm | ±30ppm | 18pF | -40°C ~ 85°C |
| ECS-120-18-5PX-TR | CSM-7X | 12MHz | ±50ppm | ±30ppm | 18pF | -10°C ~ 70°C |
| ECS-120-32-5PX-TR | CSM-7X | 12MHz | ±50ppm | ±30ppm | 32pF | -10°C ~ 70°C |
| ECS-120-S-5PX-TR | CSM-7X | 12MHz | ±50ppm | ±30ppm | Series | -10°C ~ 70°C |
| ECS-122.8-18-5PXEN-TR | CSM-7X | 12.288MHz | ±50ppm | ±30ppm | 18pF | -40°C ~ 85°C |
| ECS-122.8-20-5PX-TR | CSM-7X | 12.288MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-122.8-S-5PX-TR | CSM-7X | 12.288MHz | ±50ppm | ±30ppm | Series | -10°C ~ 70°C |
| ECS-135.6-12-5PX-TR | CSM-7X | 13.56MHz | ±50ppm | ±30ppm | 12pF | -10°C ~ 70°C |
| ECS-135-18-5PXEN-TR | CSM-7X | 13.5168MHz | ±50ppm | ±30ppm | 18pF | -40°C ~ 85°C |
| ECS-143-18-5PXEN-TR | CSM-7X | 14.31818MHz | ±50ppm | ±30ppm | 18pF | -40°C ~ 85°C |
| ECS-143-20-5PX-TR | CSM-7X | 14.31818MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-143-S-5PX-TR | CSM-7X | 14.31818MHz | ±50ppm | ±30ppm | Series | -10°C ~ 70°C |
| ECS-147.4-18-5PXEN-TR | CSM-7X | 14.7456MHz | ±50ppm | ±30ppm | 18pF | -40°C ~ 85°C |
| ECS-147.4-20-5PX-TR | CSM-7X | 14.7456MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-147.4-S-5PX-TR | CSM-7X | 14.7456MHz | ±50ppm | ±30ppm | Series | -10°C ~ 70°C |
| ECS-150-18-5PXEN | CSM-7X | 15MHz | ±50ppm | ±30ppm | 18pF | -40°C ~ 85°C |
| ECS-150-S-5PX-TR | CSM-7X | 15MHz | ±50ppm | ±30ppm | Series | -10°C ~ 70°C |
| ECS-160.003-18-5PXEN-TR | CSM-7X | 16.000312MHz | ±50ppm | ±30ppm | 18pF | -40°C ~ 85°C |
| ECS-160.003-18-5PX-TR | CSM-7X | 16.000312MHz | ±50ppm | ±30ppm | 18pF | -10°C ~ 70°C |
| ECS-160-18-5PXEN-TR | CSM-7X | 16MHz | ±50ppm | ±30ppm | 18pF | -40°C ~ 85°C |
| ECS-160-20-5PX-TR | CSM-7X | 16MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-160-S-5PX-TR | CSM-7X | 16MHz | ±50ppm | ±30ppm | Series | -10°C ~ 70°C |
| ECS-162.57-18-5PXEN-TR | CSM-7X | 16.257MHz | ±50ppm | ±30ppm | 18pF | -40°C ~ 85°C |
| ECS-163-18-5PXEN-TR | CSM-7X | 16.384MHz | ±50ppm | ±30ppm | 18pF | -40°C ~ 85°C |
| ECS-177.3-18-5PXEN | CSM-7X | 17.734475MHz | ±50ppm | ±30ppm | 18pF | -40°C ~ 85°C |
| ECS-180-18-5PXEN | CSM-7X | 18MHz | ±50ppm | ±30ppm | 18pF | -40°C ~ 85°C |
| ECS-180-S-5PX-TR | CSM-7X | 18MHz | ±50ppm | ±30ppm | Series | -10°C ~ 70°C |
| ECS-184-18-5PX-TR | CSM-7X | 18.432MHz | ±50ppm | ±30ppm | 18pF | -10°C ~ 70°C |
| ECS-184-20-5PX-TR | CSM-7X | 18.432MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-184-S-5PX-TR | CSM-7X | 18.432MHz | ±50ppm | ±30ppm | Series | -10°C ~ 70°C |
| ECS-196.6-18-5PXEN-TR | CSM-7X | 19.6608MHz | ±50ppm | ±30ppm | 18pF | -40°C ~ 85°C |
| ECS-196.6-20-5PX-TR | CSM-7X | 19.6608MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-200-16-5PX-TR | CSM-7X | 20MHz | ±50ppm | ±30ppm | 16pF | -10°C ~ 70°C |
| ECS-200-18-5PXEN-TR | CSM-7X | 20MHz | ±50ppm | ±30ppm | 18pF | -40°C ~ 85°C |
| ECS-200-20-5PX-TR | CSM-7X | 20MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-200-S-5PX-TR | CSM-7X | 20MHz | ±50ppm | ±30ppm | Series | -10°C ~ 70°C |
| ECS-204.8-20-5PX | CSM-7X | 20.48MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-221-18-5PXEN-TR | CSM-7X | 22.1184MHz | ±50ppm | ±30ppm | 18pF | -40°C ~ 85°C |
| ECS-240-12-5PX-TR | CSM-7X | 24MHz | ±50ppm | ±30ppm | 12pF | -10°C ~ 70°C |
| ECS-240-16-5PX-TR | CSM-7X | 24MHz | ±50ppm | ±30ppm | 16pF | -10°C ~ 70°C |
| ECS-240-18-5PXEN-TR | CSM-7X | 24MHz | ±50ppm | ±30ppm | 18pF | -40°C ~ 85°C |
| ECS-240-20-5PX-TR | CSM-7X | 24MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-245.7-18-5PXEN-TR | CSM-7X | 24.576MHz | ±50ppm | ±30ppm | 18pF | -40°C ~ 85°C |
| ECS-245.7-20-5PX-TR | CSM-7X | 24.576MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
