ECS-1633-270-BN-TR|ECS|27M|3.3V|50PPM|2016
頻率：27MHZ
尺寸：2016mm
ECS-1633-270-BN-TR|ECS|27M|3.3V|50PPM|2016,美國ECS晶振,ECS-1633 SMD時鐘振蕩器，ECS-1633（3.3V）亞微型SMD振蕩器。非常適合今天的高密度應用程序。
訂購熱線：0755-27876565
ECS-1633-270-BN-TR|ECS|27M|3.3V|50PPM|2016,美國ECS晶振,ECS-1633 SMD時鐘振蕩器，ECS-1633（3.3V）亞微型SMD振蕩器。非常適合今天的高密度應用程序。
ECS-ECS-300-8-36CKM-30MHz-10PPM-8PF-2520

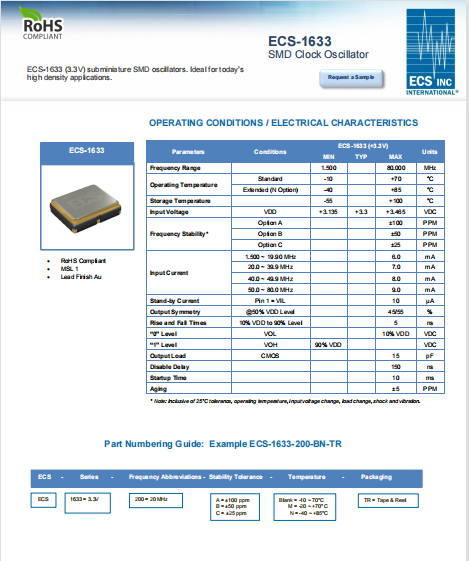

| 參數 | 環境 | ECS-1633 (+3.3V) | 單位 | ||
| 最小值 | 典型的 | 最大值 | |||
| 頻率 | 1.500 | 80.000 | MHz | ||
| 工作溫度 | Standard | --10 | +70 | °C | |
| Extended (N Option) | --40 | +85 | °C | ||
| 儲存溫度 | --55 | +100 | °C | ||
| 電源電壓 | VDD | +3.135 | +3.3 | +3.465 | VDC |
| 頻率穩定性 | Option A | ±100 | PPM | ||
| Option B | ±50 | PPM | |||
| Option C | ±25 | PPM | |||
| 輸入電流 | 1.500 ~ 19.90 MHz | 6.0 | mA | ||
| 20.0 ~ 39.9 MHz | 7.0 | mA | |||
| 40.0 ~ 49.9 MHz | 8.0 | mA | |||
| 50.0 ~ 80.0 MHz | 9.0 | mA | |||
| 維持電流 | Pin 1 = VIL | 10 | μA | ||
| 輸出對稱性 | @50% VDD Level | 45/55 | % | ||
| 上升和下降時間 | 10% VDD to 90% Level | 5 | ns | ||
| 0級別 | VOL | 10% VDD | VDC | ||
| 1級別 | VOH | 90% VDD | VDC | ||
| 輸出負載 | CMOS | 15 | pF | ||
| 禁用延遲 | 150 | ns | |||
| 啟動時間 | 10 | ms | |||
| 老化 | ±5 | PPM | |||
ECS-ECS-300-8-36CKM-30MHz-10PPM-8PF-2520
| ECS原廠編碼 | 型號 | 類型 | 頻率 | 輸出 | 電源電壓 | 頻率偏差度 |
| ECS-1618-192-BN-TR | ECS-1618 | XO (Standard) | 19.2MHz | CMOS | 1.8V | ±50ppm |
| ECS-1618-300-BN-TR | ECS-1618 | XO (Standard) | 30MHz | CMOS | 1.8V | ±50ppm |
| ECS-1618-060-BN-TR | ECS-1618 | XO (Standard) | 6MHz | CMOS | 1.8V | ±50ppm |
| ECS-1618-120-BN-TR | ECS-1618 | XO (Standard) | 12MHz | CMOS | 1.8V | ±50ppm |
| ECS-1618-260-BN-TR | ECS-1618 | XO (Standard) | 26MHz | CMOS | 1.8V | ±50ppm |
| ECS-1618-270-BN-TR | ECS-1618 | XO (Standard) | 27MHz | CMOS | 1.8V | ±50ppm |
| ECS-1618-240-BN-TR | ECS-1618 | XO (Standard) | 24MHz | CMOS | 1.8V | ±50ppm |
| ECS-1618-480-BN-TR | ECS-1618 | XO (Standard) | 48MHz | CMOS | 1.8V | ±50ppm |
| ECS-1633-480-BN-TR | ECS-1633 | XO (Standard) | 48MHz | CMOS | 3.3V | ±50ppm |
| ECS-1633-270-BN-TR | ECS-1633 | XO (Standard) | 27MHz | CMOS | 3.3V | ±50ppm |
| ECS-1633-300-BN-TR | ECS-1633 | XO (Standard) | 30MHz | CMOS | 3.3V | ±50ppm |
| ECS-1633-240-BN-TR | ECS-1633 | XO (Standard) | 24MHz | CMOS | 3.3V | ±50ppm |
| ECS-1633-260-BN-TR | ECS-1633 | XO (Standard) | 26MHz | CMOS | 3.3V | ±50ppm |
| ECS-1633-060-BN-TR | ECS-1633 | XO (Standard) | 6MHz | CMOS | 3.3V | ±50ppm |
| ECS-1633-120-BN-TR | ECS-1633 | XO (Standard) | 12MHz | CMOS | 3.3V | ±50ppm |
| ECS-1633-192-BN-TR | ECS-1633 | XO (Standard) | 19.2MHz | CMOS | 3.3V | ±50ppm |
| ECS-2018-250-BN | ECS-2018 | XO (Standard) | 25MHz | HCMOS | 1.8V | ±50ppm |
| ECS-2018-200-BN | ECS-2018 | XO (Standard) | 20MHz | HCMOS | 1.8V | ±50ppm |
| ECS-2018-270-BN | ECS-2018 | XO (Standard) | 27MHz | HCMOS | 1.8V | ±50ppm |
| ECS-2018-120-BN | ECS-2018 | XO (Standard) | 12MHz | HCMOS | 1.8V | ±50ppm |
| ECS-2018-480-BN | ECS-2018 | XO (Standard) | 48MHz | HCMOS | 1.8V | ±50ppm |
| ECS-2018-080-BN | ECS-2018 | XO (Standard) | 8MHz | HCMOS | 1.8V | ±50ppm |
| ECS-2018-240-BN | ECS-2018 | XO (Standard) | 24MHz | HCMOS | 1.8V | ±50ppm |
| ECS-2018-500-BN | ECS-2018 | XO (Standard) | 50MHz | HCMOS | 1.8V | ±50ppm |
| ECS-2018-160-BN | ECS-2018 | XO (Standard) | 16MHz | HCMOS | 1.8V | ±50ppm |
| ECS-2018-400-BN | ECS-2018 | XO (Standard) | 40MHz | HCMOS | 1.8V | ±50ppm |
| ECS-2018-300-BN | ECS-2018 | XO (Standard) | 30MHz | HCMOS | 1.8V | ±50ppm |
| ECS-2018-100-BN | ECS-2018 | XO (Standard) | 10MHz | HCMOS | 1.8V | ±50ppm |
| ECS-2018-073-BN | ECS-2018 | XO (Standard) | 7.3728MHz | HCMOS | 1.8V | ±50ppm |
| ECS-2018-130-BN | ECS-2018 | XO (Standard) | 13MHz | HCMOS | 1.8V | ±50ppm |
| ECS-2018-147.4-BN | ECS-2018 | XO (Standard) | 14.7456MHz | HCMOS | 1.8V | ±50ppm |
| ECS-2018-035-BN | ECS-2018 | XO (Standard) | 3.579545MHz | HCMOS | 1.8V | ±50ppm |
| ECS-2018-040-BN | ECS-2018 | XO (Standard) | 4MHz | HCMOS | 1.8V | ±50ppm |
| ECS-2018-320-BN | ECS-2018 | XO (Standard) | 32MHz | HCMOS | 1.8V | ±50ppm |
| ECS-2018-143-BN | ECS-2018 | XO (Standard) | 14.31818MHz | HCMOS | 1.8V | ±50ppm |
| ECS-2018-060-BN | ECS-2018 | XO (Standard) | 6MHz | HCMOS | 1.8V | ±50ppm |
| ECS-2018-036-BN | ECS-2018 | XO (Standard) | 3.6864MHz | HCMOS | 1.8V | ±50ppm |
| ECS-2018-1000-BN | ECS-2018 | XO (Standard) | 100MHz | HCMOS | 1.8V | ±50ppm |
| ECS-2018-1250-BN | ECS-2018 | XO (Standard) | 125MHz | HCMOS | 1.8V | ±50ppm |
| ECS-2033-147.4-AU | ECS-2033 | XO (Standard) | 14.7456MHz | CMOS | 3.3V | ±100ppm |
| ECS-2033-240-BN | ECS-2033 | XO (Standard) | 24MHz | CMOS | 3.3V | ±50ppm |
| ECS-2033-060-BN | ECS-2033 | XO (Standard) | 6MHz | CMOS | 3.3V | ±50ppm |
| ECS-2033-147.4-BN | ECS-2033 | XO (Standard) | 14.7456MHz | CMOS | 3.3V | ±50ppm |
| ECS-2033-080-BN | ECS-2033 | XO (Standard) | 8MHz | CMOS | 3.3V | ±50ppm |
| ECS-2033-160-BN | ECS-2033 | XO (Standard) | 16MHz | CMOS | 3.3V | ±50ppm |
| ECS-2033-500-BN | ECS-2033 | XO (Standard) | 50MHz | CMOS | 3.3V | ±50ppm |
| ECS-2033-130-BN | ECS-2033 | XO (Standard) | 13MHz | CMOS | 3.3V | ±50ppm |
| ECS-2033-480-BN | ECS-2033 | XO (Standard) | 48MHz | CMOS | 3.3V | ±50ppm |
| ECS-2033-100-BN | ECS-2033 | XO (Standard) | 10MHz | CMOS | 3.3V | ±50ppm |
| ECS-2033-270-BN | ECS-2033 | XO (Standard) | 27MHz | CMOS | 3.3V | ±50ppm |
| ECS-2033-320-BN | ECS-2033 | XO (Standard) | 32MHz | CMOS | 3.3V | ±50ppm |
| ECS-2033-100-AU | ECS-2033 | XO (Standard) | 10MHz | CMOS | 3.3V | ±100ppm |
| ECS-2033-400-AU | ECS-2033 | XO (Standard) | 40MHz | CMOS | 3.3V | ±100ppm |
| ECS-2033-073-BN | ECS-2033 | XO (Standard) | 7.3728MHz | CMOS | 3.3V | ±50ppm |
| ECS-2033-320-AU | ECS-2033 | XO (Standard) | 32MHz | CMOS | 3.3V | ±100ppm |
| ECS-2033-035-BN | ECS-2033 | XO (Standard) | 3.579545MHz | CMOS | 3.3V | ±50ppm |
| ECS-2033-036-AU | ECS-2033 | XO (Standard) | 3.6864MHz | CMOS | 3.3V | ±100ppm |
| ECS-2033-143-AU | ECS-2033 | XO (Standard) | 14.31818MHz | CMOS | 3.3V | ±100ppm |
| ECS-2033-270-AU | ECS-2033 | XO (Standard) | 27MHz | CMOS | 3.3V | ±100ppm |
| ECS-2033-120-AU | ECS-2033 | XO (Standard) | 12MHz | CMOS | 3.3V | ±100ppm |
| ECS-2033-040-AU | ECS-2033 | XO (Standard) | 4MHz | CMOS | 3.3V | ±100ppm |
| ECS-2033-130-AU | ECS-2033 | XO (Standard) | 13MHz | CMOS | 3.3V | ±100ppm |
| ECS-2033-250-AU | ECS-2033 | XO (Standard) | 25MHz | CMOS | 3.3V | ±100ppm |
| ECS-2033-035-AU | ECS-2033 | XO (Standard) | 3.579545MHz | CMOS | 3.3V | ±100ppm |
| ECS-2033-060-AU | ECS-2033 | XO (Standard) | 6MHz | CMOS | 3.3V | ±100ppm |
| ECS-2033-240-AU | ECS-2033 | XO (Standard) | 24MHz | CMOS | 3.3V | ±100ppm |
| ECS-2033-200-AU | ECS-2033 | XO (Standard) | 20MHz | CMOS | 3.3V | ±100ppm |
| ECS-2033-300-AU | ECS-2033 | XO (Standard) | 30MHz | CMOS | 3.3V | ±100ppm |
| ECS-2033-500-AU | ECS-2033 | XO (Standard) | 50MHz | CMOS | 3.3V | ±100ppm |
| ECS-2033-400-BN | ECS-2033 | XO (Standard) | 40MHz | CMOS | 3.3V | ±50ppm |
| ECS-2033-143-BN | ECS-2033 | XO (Standard) | 14.31818MHz | CMOS | 3.3V | ±50ppm |
| ECS-2033-040-BN | ECS-2033 | XO (Standard) | 4MHz | CMOS | 3.3V | ±50ppm |
| ECS-2033-300-BN | ECS-2033 | XO (Standard) | 30MHz | CMOS | 3.3V | ±50ppm |
| ECS-2033-120-BN | ECS-2033 | XO (Standard) | 12MHz | CMOS | 3.3V | ±50ppm |
| ECS-2033-250-BN | ECS-2033 | XO (Standard) | 25MHz | CMOS | 3.3V | ±50ppm |
| ECS-2033-200-BN | ECS-2033 | XO (Standard) | 20MHz | CMOS | 3.3V | ±50ppm |
| ECS-2033-036-BN | ECS-2033 | XO (Standard) | 3.6864MHz | CMOS | 3.3V | ±50ppm |
| ECS-2033-073-AU | ECS-2033 | XO (Standard) | 7.3728MHz | CMOS | 3.3V | ±100ppm |
| ECS-2033-080-AU | ECS-2033 | XO (Standard) | 8MHz | CMOS | 3.3V | ±100ppm |
| ECS-2033-160-AU | ECS-2033 | XO (Standard) | 16MHz | CMOS | 3.3V | ±100ppm |
| ECS-2033-1000-BN | ECS-2033 | XO (Standard) | 100MHz | CMOS | 3.3V | ±50ppm |
| ECS-2033-1250-BN | ECS-2033 | XO (Standard) | 125MHz | CMOS | 3.3V | ±50ppm |
