KC3225L156.250H2GJ00高頻差分晶振,京瓷高品質有源6G晶振
頻率：156.25MHZ

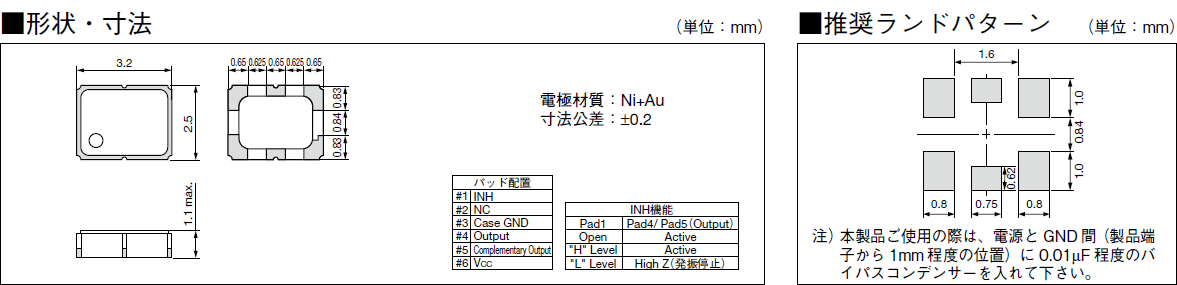

尺寸：3.2x2.5mm
超小型表面貼片型貼片晶振,最適合使用在汽車電子領域中,也是特別要求高可靠性的引擎控制用CPU的時鐘部分.低頻晶振可從7.98MHz起對應,小型,超薄型具備強防焊裂性,石英晶體在極端嚴酷的環境條件下也能發揮穩定的起振特性,產品本身具有耐熱,耐振,耐撞擊等優良的耐環境特性,滿足無鉛焊接以及高溫回流溫度曲線要求,符合AEC-Q200標準.
訂購熱線：0755-27876565
KC3225L156.250H2GJ00高頻差分晶振,京瓷高品質有源6G晶振,有源晶體振蕩器,3225晶振,石英晶振,貼片晶振,6G晶振,差分晶振,高頻晶振,日本進口晶振,耐高溫有源晶振,高品質晶振，京瓷晶振,KC3225L156.250H2GJ00,KC3225L-H2晶振,光模塊晶振

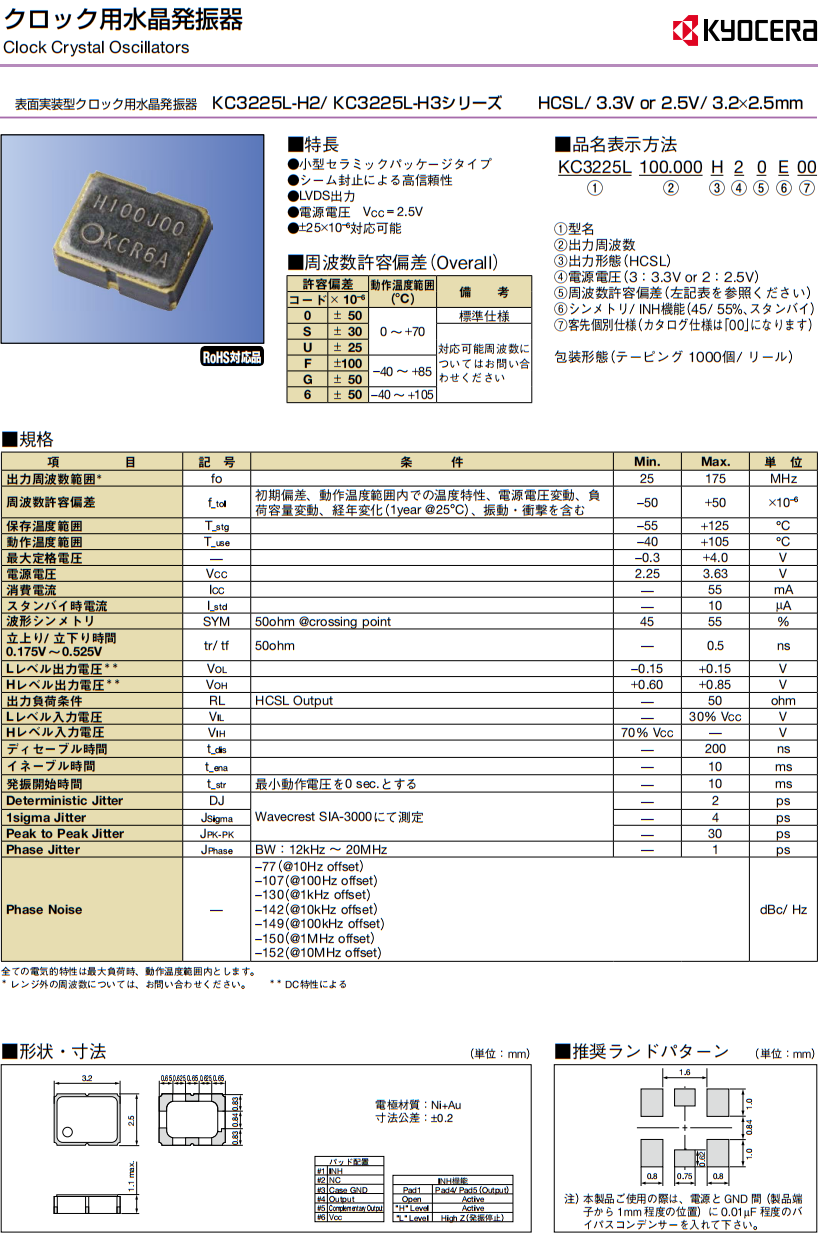

KC3225L156.250H2GJ00高頻差分晶振,京瓷高品質有源6G晶振
| 項目 | 記 號 | 條件 | Min. | Max. | 単 位 |
| 頻率范圍 | fo | 25 | 175 | MHz | |
| 頻率偏差度 | f_tol |
初期偏差、動作溫度範囲內での溫度特性、電源電圧変動、負 荷容量変動、経年変化(1year @25°C) 、振動 ? 衝撃を含む |
−50 | +50 | × 10−6 |
| 儲存溫度 | T_stg | −55 | +125 | °C | |
| 工作溫度 | T_use | −40 | +105 | °C | |
| 最大電壓 | — | −0.3 | +4.0 | V | |
| 電壓電壓 | VCC | 2.25 | 3.63 | V | |
| 消耗電流 | ICC | — | 55 |
 mA
|
|
| 待機電流 | I_std | — | 10 | A | |
| 波形對稱 | SYM | 50ohm @crossing point | 45 | 55 | % |
| 上升/下降時間0.175 V~0.525 V | tr/ tf | 50ohm | — | 0.5 | ns |
| 電平輸入電壓 | VOL | −0.15 | +0.15 | V | |
| 電平輸出電壓 | VOH | +0.60 | +0.85 | V | |
| 出力負荷條件 | RL | HCSL Output | — | 50 | ohm |
| 禁用時間 | t_dis | — | 200 | ns | |
| 使能時間 | t_ena | — | 10 | ms | |
| 発振開始時間 | t_str | 最小動作電圧を0 sec. とする | — | 10 | ms |
| Deterministic Jitter | DJ | Wavecrest SIA-3000にて測定 | — | 2 | ps |
| 1sigma Jitter | JSigma | — | 4 | ps | |
| 峰值到峰值抖動 | JPK-PK | — | 30 | ps | |
| 相位抖動 | JPhase | BW ：12kHz ? 20MHz | — | 1 | ps |
| 相位噪音 | — |
−77 (@10Hz offset) − 107 (@100Hz offset) − 130 (@1kHz offset) − 142 (@10kHz offset) − 149 (@100kHz offset) − 150 (@1MHz offset) − 152 (@10MHz offset) |
dBc/ Hz | ||
KC3225L156.250H2GJ00高頻差分晶振,京瓷高品質有源6G晶振
| 京瓷原廠編碼 | 生產商品牌 | 型號 | 類型 | 頻率 | 輸出類型 | 電壓 | 頻率穩定度 |
| KC3225L156.250P2GJ00 | KYOCERA晶振 | KC3225L-P2 | XO (Standard) | 156.25 MHz | LVPECL | 2.5V | ±50ppm |
| KC3225L156.250P3GJ00 | KYOCERA晶振 | KC3225L-P3 | XO (Standard) | 156.25 MHz | LVPECL | 3.3V | ±50ppm |
| KC3225L156.250H2GJ00 | KYOCERA晶振 | KC3225L-H2 | XO (Standard) | 156.25 MHz | HCSL | 2.5V | ±50ppm |
| KC3225L156.250H3GJ00 | KYOCERA晶振 | KC3225L-H3 | XO (Standard) | 156.25 MHz | HCSL | 3.3V | ±50ppm |
| KC7050T156.250L3AEYF | KYOCERA晶振 | KC7050T-L3 | SO (SAW) | 156.25 MHz | LVDS | 3.3V | ±100ppm |
| KC7050T212.500L3AEYF | KYOCERA晶振 | KC7050T-L3 | SO (SAW) | 212.5 MHz | LVDS | 3.3V | ±100ppm |
| KC7050T212.500P3AEYG | KYOCERA晶振 | KC7050T-P3 | SO (SAW) | 212.5 MHz | LVPECL | 3.3V | ±100ppm |
| KC7050P125.000L20E00 | KYOCERA晶振 | KC7050P-L2 | XO (Standard) | 125 MHz | LVDS | 2.5V | ±50ppm |
| KC7050P150.000L20E00 | KYOCERA晶振 | KC7050P-L2 | XO (Standard) | 150 MHz | LVDS | 2.5V | ±50ppm |
| KC7050T156.250L20E00 | KYOCERA晶振 | KC7050T-L2 | SO (SAW) | 156.25 MHz | LVDS | 2.5V | ±50ppm |
| KC7050T156.250L30E00 | KYOCERA晶振 | KC7050T-L3 | SO (SAW) | 156.25 MHz | LVDS | 3.3V | ±50ppm |
| KC7050T200.000L20E00 | KYOCERA晶振 | KC7050T-L2 | SO (SAW) | 200 MHz | LVDS | 2.5V | ±50ppm |
| KC7050T200.000L30E00 | KYOCERA晶振 | KC7050T-L3 | SO (SAW) | 200 MHz | LVDS | 3.3V | ±50ppm |
| KC7050T250.000L20E00 | KYOCERA晶振 | KC7050T-L2 | SO (SAW) | 250 MHz | LVDS | 2.5V | ±50ppm |
| KC7050T250.000L30E00 | KYOCERA晶振 | KC7050T-L3 | SO (SAW) | 250 MHz | LVDS | 3.3V | ±50ppm |
| KC7050T312.500L20E00 | KYOCERA晶振 | KC7050T-L2 | SO (SAW) | 312.5 MHz | LVDS | 2.5V | ±50ppm |
| KC7050T312.500L30E00 | KYOCERA晶振 | KC7050T-L3 | SO (SAW) | 312.5 MHz | LVDS | 3.3V | ±50ppm |
| KC7050Y312.500L20EZU | KYOCERA晶振 | KC7050Y-L20EZU | SO (SAW) | 312.5 MHz | LVDS | 2.5V | ±50ppm |
| KC7050Y156.250P20EZU | KYOCERA晶振 | KC7050Y-P20EZU | SO (SAW) | 156.25 MHz | LVPECL | 2.5V | ±50ppm |
| KC7050Y312.500L30EZU | KYOCERA晶振 | KC7050Y-L30EZU | SO (SAW) | 312.5 MHz | LVDS | 3.3V | ±50ppm |
| KC7050Y312.500P20EZU | KYOCERA晶振 | KC7050Y-P20EZU | SO (SAW) | 312.5 MHz | LVPECL | 2.5V | ±50ppm |
| KC7050Y312.500P30EZU | KYOCERA晶振 | KC7050Y-P30EZU | SO (SAW) | 312.5 MHz | LVPECL | 3.3V | ±50ppm |
| KC7050Y75.0000L20EZU | KYOCERA晶振 | KC7050Y-L20EZU | SO (SAW) | 75 MHz | LVDS | 2.5V | ±50ppm |
| KC7050Y75.0000L30EZU | KYOCERA晶振 | KC7050Y-L30EZU | SO (SAW) | 75 MHz | LVDS | 3.3V | ±50ppm |
| KC7050Y200.000L30EZU | KYOCERA晶振 | KC7050Y-L30EZU | SO (SAW) | 200 MHz | LVDS | 3.3V | ±50ppm |
| KC7050Y75.0000P20EZU | KYOCERA晶振 | KC7050Y-P20EZU | SO (SAW) | 75 MHz | LVPECL | 2.5V | ±50ppm |
| KC7050Y125.000P30EZU | KYOCERA晶振 | KC7050Y-P30EZU | SO (SAW) | 125 MHz | LVPECL | 3.3V | ±50ppm |
| KC7050Y75.0000P30EZU | KYOCERA晶振 | KC7050Y-P30EZU | SO (SAW) | 75 MHz | LVPECL | 3.3V | ±50ppm |
| KC7050Y250.000L20EZU | KYOCERA晶振 | KC7050Y-L20EZU | SO (SAW) | 250 MHz | LVDS | 2.5V | ±50ppm |
| KC7050Y250.000L30EZU | KYOCERA晶振 | KC7050Y-L30EZU | SO (SAW) | 250 MHz | LVDS | 3.3V | ±50ppm |
| KC7050Y250.000P20EZU | KYOCERA晶振 | KC7050Y-P20EZU | SO (SAW) | 250 MHz | LVPECL | 2.5V | ±50ppm |
| KC7050Y250.000P30EZU | KYOCERA晶振 | KC7050Y-P30EZU | SO (SAW) | 250 MHz | LVPECL | 3.3V | ±50ppm |
| KC7050Y125.000L20EZU | KYOCERA晶振 | KC7050Y-L20EZU | SO (SAW) | 125 MHz | LVDS | 2.5V | ±50ppm |
| KC7050Y156.250P30EZU | KYOCERA晶振 | KC7050Y-P30EZU | SO (SAW) | 156.25 MHz | LVPECL | 3.3V | ±50ppm |
| KC7050Y125.000L30EZU | KYOCERA晶振 | KC7050Y-L30EZU | SO (SAW) | 125 MHz | LVDS | 3.3V | ±50ppm |
| KC7050Y125.000P20EZU | KYOCERA晶振 | KC7050Y-P20EZU | SO (SAW) | 125 MHz | LVPECL | 2.5V | ±50ppm |
| KC7050Y200.000L20EZU | KYOCERA晶振 | KC7050Y-L20EZU | SO (SAW) | 200 MHz | LVDS | 2.5V | ±50ppm |
| KC7050Y200.000P20EZU | KYOCERA晶振 | KC7050Y-P20EZU | SO (SAW) | 200 MHz | LVPECL | 2.5V | ±50ppm |
| KC7050Y156.250L20EZU | KYOCERA晶振 | KC7050Y-L20EZU | SO (SAW) | 156.25 MHz | LVDS | 2.5V | ±50ppm |
| KC7050Y200.000P30EZU | KYOCERA晶振 | KC7050Y-P30EZU | SO (SAW) | 200 MHz | LVPECL | 3.3V | ±50ppm |
| KC7050Y156.250L30EZU | KYOCERA晶振 | KC7050Y-L30EZU | SO (SAW) | 156.25 MHz | LVDS | 3.3V | ±50ppm |
| KC7050P125.000L30E00 | KYOCERA晶振 | KC7050P-L3 | XO (Standard) | 125 MHz | LVDS | 3.3V | ±50ppm |
| KC7050P156.250L30E00 | KYOCERA晶振 | KC7050P-L3 | XO (Standard) | 156.25 MHz | LVDS | 3.3V | ±50ppm |
| KC7050P100.000P30E00 | KYOCERA晶振 | KC7050P-P3 | XO (Standard) | 100 MHz | LVPECL | 3.3V | ±50ppm |
| KC7050P106.250P30E00 | KYOCERA晶振 | KC7050P-P3 | XO (Standard) | 106.25 MHz | LVPECL | 3.3V | ±50ppm |
| KC7050P125.000P30E00 | KYOCERA晶振 | KC7050P-P3 | XO (Standard) | 125 MHz | LVPECL | 3.3V | ±50ppm |
| KC7050P155.520P30E00 | KYOCERA晶振 | KC7050P-P3 | XO (Standard) | 155.52 MHz | LVPECL | 3.3V | ±50ppm |
| KC7050T156.250P20E00 | KYOCERA晶振 | KC7050T-P2 | SO (SAW) | 156.25 MHz | LVPECL | 2.5V | ±50ppm |
| KC7050T200.000P20E00 | KYOCERA晶振 | KC7050T-P2 | SO (SAW) | 200 MHz | LVPECL | 2.5V | ±50ppm |
| KC7050T250.000P20E00 | KYOCERA晶振 | KC7050T-P2 | SO (SAW) | 250 MHz | LVPECL | 2.5V | ±50ppm |
| KC7050T312.500P20E00 | KYOCERA晶振 | KC7050T-P2 | SO (SAW) | 312.5 MHz | LVPECL | 2.5V | ±50ppm |
| KC7050T156.250P30E00 | KYOCERA晶振 | KC7050T-P3 | SO (SAW) | 156.25 MHz | LVPECL | 3.3V | ±50ppm |
| KC7050T200.000P30E00 | KYOCERA晶振 | KC7050T-P3 | SO (SAW) | 200 MHz | LVPECL | 3.3V | ±50ppm |
| KC7050T250.000P30E00 | KYOCERA晶振 | KC7050T-P3 | SO (SAW) | 250 MHz | LVPECL | 3.3V | ±50ppm |
| KC7050T312.500P30E00 | KYOCERA晶振 | KC7050T-P3 | SO (SAW) | 312.5 MHz | LVPECL | 3.3V | ±50ppm |
| KC7050P100.000L30E00 | KYOCERA晶振 | KC7050P-L3 | XO (Standard) | 100 MHz | LVDS | 3.3V | ±50ppm |
| KC3225L156.250L3GJ00 | KYOCERA晶振 | KC3225L-L3 | XO (Standard) | 156.25 MHz | LVDS | 3.3V | ±50ppm |
| KC3225L156.250L2GJ00 | KYOCERA晶振 | KC3225L-L2 | XO (Standard) | 156.25 MHz | LVDS | 2.5V | ±50ppm |
| KC7050P150.000L30E00 | KYOCERA晶振 | KC7050P-L3 | XO (Standard) | 150 MHz | LVDS | 3.3V | ±50ppm |
| KC7050P155.520L30E00 | KYOCERA晶振 | KC7050P-L3 | XO (Standard) | 155.52 MHz | LVDS | 3.3V | ±50ppm |
| KC7050P156.250P30E00 | KYOCERA晶振 | KC7050P-P3 | XO (Standard) | 156.25 MHz | LVPECL | 3.3V | ±50ppm |
| KC7050P156.250L20E00 | KYOCERA晶振 | KC7050P-L2 | XO (Standard) | 156.25 MHz | LVDS | 2.5V | ±50ppm |
