X3AEEJNANF-38.400000|38.4M|1612|8PF|30PPM|-40~105℃
頻率：38.4MHZ

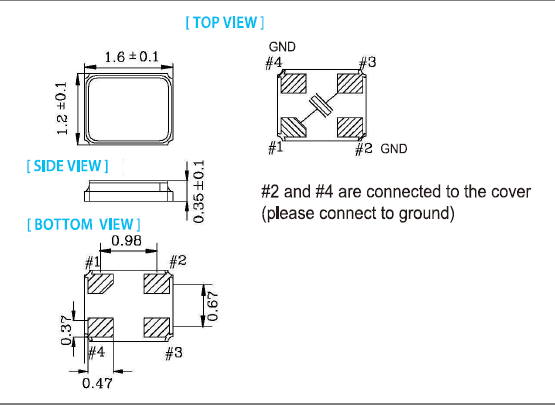

尺寸：1.6x1.2mm
X3AEEJNANF-38.400000|38.4M|1612|8PF|30PPM|-40~105℃，泰藝晶振,X3晶振,X3AEEJNANF-38.400000晶振,貼片晶振,無源晶振,石英晶振,智能手機晶振,平板電腦晶振,1612晶振,超小型晶振,X3LEEJNANF-24.000000晶振,X3LEELNANF-26.000000晶振,X3LEEJNANF-27.000000晶振
|

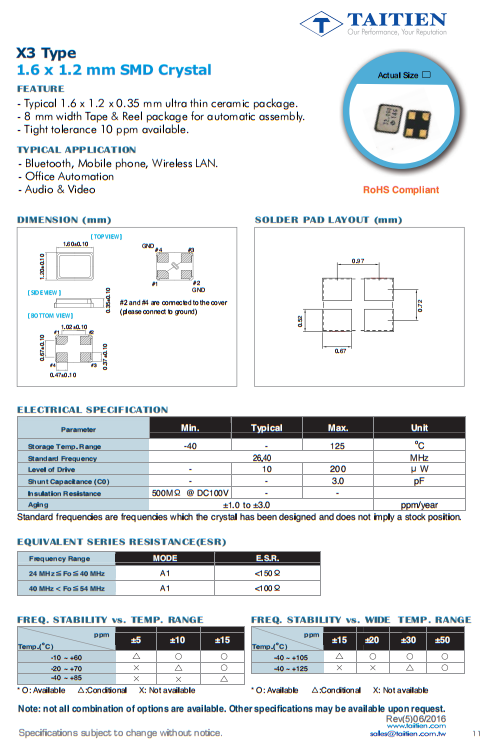

泰藝晶振規格 |
單位 |
X3貼片晶振頻率范圍 |
石英晶振基本條件 |
|
標準頻率 |
f_nom |
38.4MHZ |
標準頻率 |
|
儲存溫度 |
T_stg |
-40°C ～ +125°C |
裸存 |
|
工作溫度 |
T_use |
-40°C ～ +105°C |
標準溫度 |
|
激勵功率 |
DL |
200μW Max. |
推薦:1μW ～ 100μW |
|
頻率公差 |
f_— l |
±30 × 10-6 (標準), |
+25°C 對于超出標準的規格說明, |
|
頻率溫度特征 |
f_tem |
±30 × 10-6/-20°C ～ +70°C |
超出標準的規格請聯系我們. |
|
負載電容 |
CL |
8pF |
超出標準說明,請聯系我們. |
|
串聯電阻(ESR) |
R1 |
如下表所示 |
-40°C — +85°C, DL = 100μW |
|
頻率老化 |
f_age |
±5 × 10-6 / year Max. |
+25°C,第一年 |
X3AEEJNANF-38.400000|38.4M|1612|8PF|30PPM|-40~105℃
| TAITIEN原廠編碼 | 生產廠家 | 型號 | Type 系列 | Frequency | 頻率穩定度 | 頻率偏差 |
| X3AEEJNANF-27.000000 | TAITIEN晶體 | X3 | MHz Crystal | 27MHz | ±30ppm | ±30ppm |
| X3AEEJNANF-27.000000 | TAITIEN晶體 | X3 | MHz Crystal | 27MHz | ±30ppm | ±30ppm |
| X3AEEJNANF-27.000000 | TAITIEN晶體 | X3 | MHz Crystal | 27MHz | ±30ppm | ±30ppm |
| X3AEEJNANF-27.120000 | TAITIEN晶體 | X3 | MHz Crystal | 27.12MHz | ±30ppm | ±30ppm |
| X3AEEJNANF-27.120000 | TAITIEN晶體 | X3 | MHz Crystal | 27.12MHz | ±30ppm | ±30ppm |
| X3AEEJNANF-27.120000 | TAITIEN晶體 | X3 | MHz Crystal | 27.12MHz | ±30ppm | ±30ppm |
| X3AEEJNANF-30.000000 | TAITIEN晶體 | X3 | MHz Crystal | 30MHz | ±30ppm | ±30ppm |
| X3AEEJNANF-30.000000 | TAITIEN晶體 | X3 | MHz Crystal | 30MHz | ±30ppm | ±30ppm |
| X3AEEJNANF-30.000000 | TAITIEN晶體 | X3 | MHz Crystal | 30MHz | ±30ppm | ±30ppm |
| X3AEEJNANF-38.400000 | TAITIEN晶體 | X3 | MHz Crystal | 38.4MHz | ±30ppm | ±30ppm |
| X3AEEJNANF-38.400000 | TAITIEN晶體 | X3 | MHz Crystal | 38.4MHz | ±30ppm | ±30ppm |
| X3AEEJNANF-38.400000 | TAITIEN晶體 | X3 | MHz Crystal | 38.4MHz | ±30ppm | ±30ppm |
| X3AEELNANF-26.000000 | TAITIEN晶體 | X3 | MHz Crystal | 26MHz | ±30ppm | ±30ppm |
| X3AEELNANF-26.000000 | TAITIEN晶體 | X3 | MHz Crystal | 26MHz | ±30ppm | ±30ppm |
| X3AEELNANF-26.000000 | TAITIEN晶體 | X3 | MHz Crystal | 26MHz | ±30ppm | ±30ppm |
| X3AEELNANF-27.000000 | TAITIEN晶體 | X3 | MHz Crystal | 27MHz | ±30ppm | ±30ppm |
| X3AEELNANF-27.000000 | TAITIEN晶體 | X3 | MHz Crystal | 27MHz | ±30ppm | ±30ppm |
| X3AEELNANF-27.000000 | TAITIEN晶體 | X3 | MHz Crystal | 27MHz | ±30ppm | ±30ppm |
| X3AEELNANF-27.120000 | TAITIEN晶體 | X3 | MHz Crystal | 27.12MHz | ±30ppm | ±30ppm |
| X3AEELNANF-27.120000 | TAITIEN晶體 | X3 | MHz Crystal | 27.12MHz | ±30ppm | ±30ppm |
| X3AEELNANF-27.120000 | TAITIEN晶體 | X3 | MHz Crystal | 27.12MHz | ±30ppm | ±30ppm |
| X3AEELNANF-30.000000 | TAITIEN晶體 | X3 | MHz Crystal | 30MHz | ±30ppm | ±30ppm |
| X3AEELNANF-30.000000 | TAITIEN晶體 | X3 | MHz Crystal | 30MHz | ±30ppm | ±30ppm |
| X3AEELNANF-30.000000 | TAITIEN晶體 | X3 | MHz Crystal | 30MHz | ±30ppm | ±30ppm |
| X3AEELNANF-38.400000 | TAITIEN晶體 | X3 | MHz Crystal | 38.4MHz | ±30ppm | ±30ppm |
